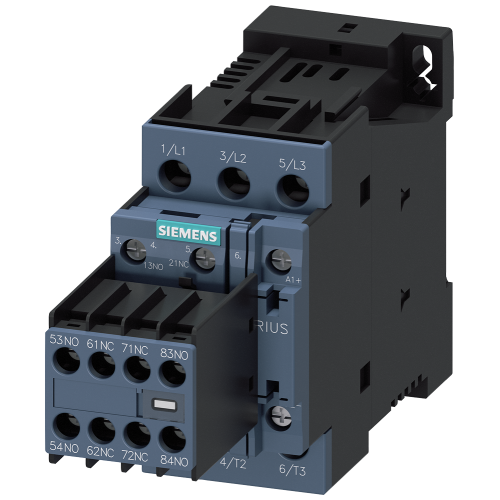

3RT20261FB480ME2

power contactor, AC-3 25 A, 11kW / 400 V 3 NO + 3 NC with 3RH2911-1x A22-0MA0, with plugged-in diod

Manufacturer's No: 3RT2026-1FB48-0ME2     Manufacturer: Siemens
power contactor, AC-3 25 A, 11kW / 400 V 3 NO + 3 NC with 3RH2911-1x A22-0MA0, with plugged-in diod

Availability Back Order

£141.84
  • Power contactor for AC-3e/AC-3 applications
  • Rated current: 25 A
  • Rated power: 11 kW at 400 V
  • Configuration: 3-pole
  • Coil voltage: 24 V DC
  • Includes plugged-in diode combination

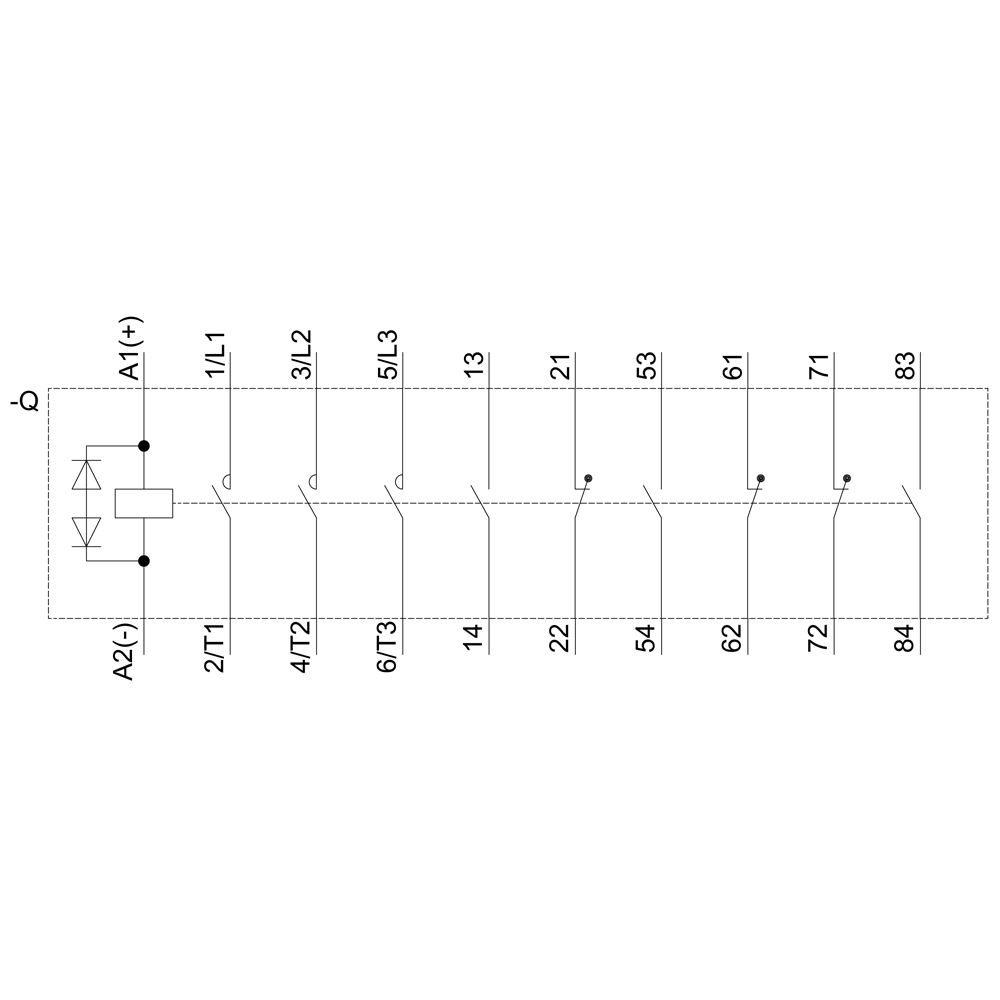

  • Auxiliary contacts: 3 normally open (NO) + 3 normally closed (NC)
  • Terminal type: Screw terminal
  • Size: S0
  • Compatible with 3RH2911-1XA22-0MA0

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Question and Answer (Q&A video)
Presentation video
Question and Answer (Q&A video)
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
3RT2026-1FB48-0ME2
Net Weight -
0.65kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
3
Number of auxiliary contacts as normally open contact -
3
Number of main contacts as normally open contact -
3
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
40 Ampere
Rated operation current Ie at AC-3, 400 V -
25 Ampere
Rated operation current Ie at AC-4, 400 V -
15.5 Ampere
Rated operation power at AC-3, 400 V -
11 Kilowatt
Rated operation power NEMA -
11.03248125 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
