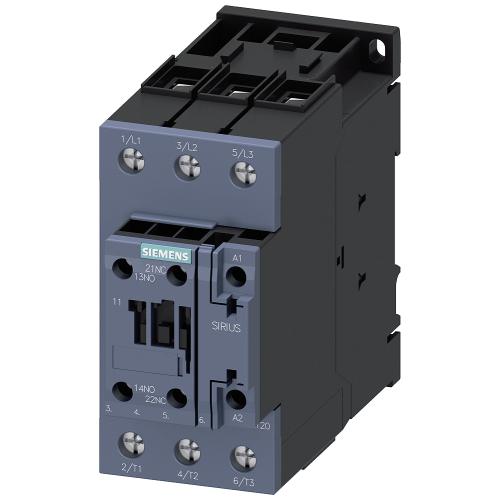

3RT20351AL20

power contactor, AC-3 40 A, 18.5kW / 400 V 1 NO + 1 NC, 230 V AC 50 / 60 Hz, 3-pole, Size S2, screw

Manufacturer's No: 3RT2035-1AL20     Manufacturer: Siemens

Availability Back Order

£120.63
  • Power contactor for AC-3 applications
  • Rated at 41 A and 18.5 kW for 400 V
  • 3-pole contactor with 230 V AC coil
  • Auxiliary contacts: 1 NO + 1 NC
  • Screw terminal connection
  • Size: S2

Accessories

Price £0.0233
Back Order

Control kit for motor contactors Size S2, S3

Product Code - 3RT29364MC00
Price £6.69
Back Order

Spare part

Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
3RT2035-1AL20
Net Weight -
0.99kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated control supply voltage Us at DC -
- Volt
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
230 Volt
Rated control supply voltage Us at AC 60HZ -
230 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
230 Volt
Rated operation current Ie at AC-1, 400 V -
60 Ampere
Rated operation current Ie at AC-3, 400 V -
41 Ampere
Rated operation current Ie at AC-4, 400 V -
35 Ampere
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Rated operation power NEMA -
22.0649625 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC

Availability Back Order

£120.63
