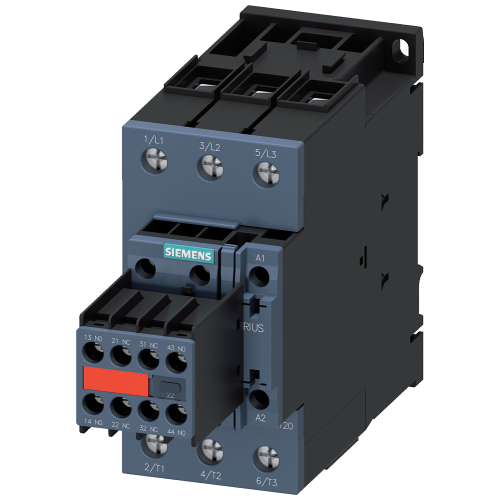

3RT20361NB343MA0

power contactor, AC-3 50 A, 22kW / 400 V 2 NO + 2 NC, 20-33 V AC/DC 20-33 V, with varistor, 3-pole,

Manufacturer's No: 3RT2036-1NB34-3MA0     Manufacturer: Siemens

Availability Back Order

£254.52
  • Power contactor for AC-3e/AC-3 applications
  • Rated at 51 A, 22 kW / 400 V
  • 3-pole contactor with integrated varistor
  • Operating voltage: 20-33 V AC/DC, 50/60 Hz
  • Auxiliary contacts: 2 NO + 2 NC
  • Screw terminal connection
  • Size: S2
  • Captive auxiliary switch included

Control kit for motor contactors Size S2, S3

Product Code - 3RT29364MC00
Price £6.69
Back Order
Question and Answer (Q&A video)
Presentation video
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
3RT2036-1NB34-3MA0
Net Weight -
1.18kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
20 Volt
Rated control supply voltage Us at AC 60HZ -
20 Volt
Rated control supply voltage Us at DC -
20 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Rated control supply voltage at AC 50 Hz -
20 Volt
Rated control supply voltage at AC 60 Hz -
20 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
70 Ampere
Rated operation current Ie at AC-3, 400 V -
51 Ampere
Rated operation current Ie at AC-4, 400 V -
41 Ampere
Rated operation power at AC-3, 400 V -
22 Kilowatt
Rated operation power NEMA -
29.41995 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC

Availability Back Order

£254.52
