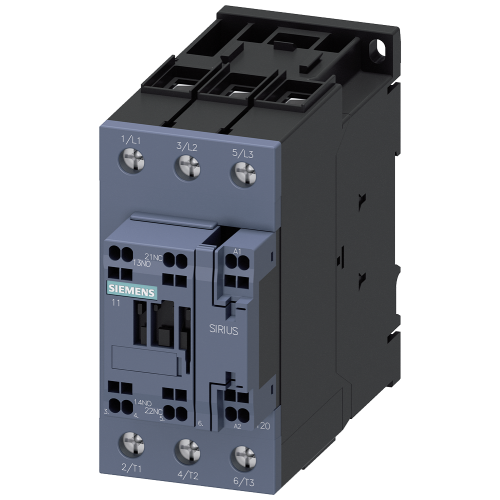

3RT20363KB40

power contactor, AC-3 50 A, 22kW / 400 V 1 NO + 1 NC, 24 V DC with varistor Spring-type terminal Suitable for 2 A PLC outputs

Manufacturer's No: 3RT2036-3KB40     Manufacturer: Siemens

Availability Back Order

£239.27
  • Power contactor for AC-3e/AC-3 applications
  • 51 A current rating
  • 22 kW power rating at 400 V
  • 3-pole configuration
  • Coil voltage: 24 V DC
  • Voltage range: 0.8-1.2 times Us
  • Integrated varistor for protection
  • Auxiliary contacts: 1 NO + 1 NC
  • Main circuit: screw terminal
  • Control and auxiliary circuit: spring-loaded terminal

Read more

  • Size: S2
  • Suitable for PLC outputs

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order
Question and Answer (Q&A video)
Presentation video
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
3RT2036-3KB40
Net Weight -
1.11kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
70 Ampere
Rated operation current Ie at AC-3, 400 V -
51 Ampere
Rated operation current Ie at AC-4, 400 V -
41 Ampere
Rated operation power at AC-3, 400 V -
22 Kilowatt
Rated operation power NEMA -
29.41995 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
