3RT23162BB40

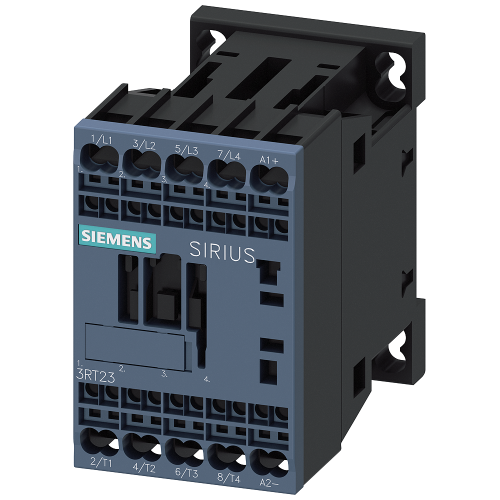

Contactor, 4 NO, AC-1: 18 A 24 V DC, 4-pole, 4 NO, Size S00, Spring-type terminal

Manufacturer's No: 3RT2316-2BB40     Manufacturer: Siemens
Contactor, 4 NO, AC-1: 18 A 24 V DC, 4-pole, 4 NO, Size S00, Spring-type terminal

Availability On Request

£42.15
  • Contactor type: AC-1
  • Current rating: 18 A
  • Voltage rating: 400 V at 40°C
  • Configuration: 4-pole
  • Control voltage: 24 V DC
  • Terminal type: Spring-loaded
  • Size: S00

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT2316-2BB40
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Modular version -
Number of main contacts as normally open contact -
4
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
18 Ampere
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation current Ie at AC-4, 400 V -
8.5 Ampere
Rated operation power at AC-3, 400 V -
4 Kilowatt
Rated operation power at AC-4, 400 V -
4 Kilowatt
Type of electrical connection of main circuit -
Spring clamp connection
Voltage type for actuating -
DC

Availability On Request

£42.15
