3RT23171BB40

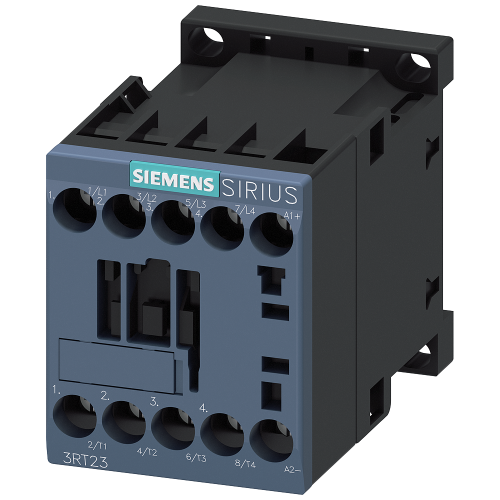

Contactor, 4 NO, AC-1: 22 A 24 V DC, 4-pole, 4 NO, Size S00, Screw terminal

Manufacturer's No: 3RT2317-1BB40     Manufacturer: Siemens
Contactor, 4 NO, AC-1: 22 A 24 V DC, 4-pole, 4 NO, Size S00, Screw terminal

Availability On Request

£50.37
  • Contactor for AC-1 applications
  • 22A current rating
  • 400V voltage rating at 40°C
  • 4-pole configuration
  • 24V DC coil voltage
  • Screw terminal connection
  • Size: S00

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Price £0.02
On Request
Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT2317-1BB40
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Modular version -
Number of main contacts as normally open contact -
4
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
22 Ampere
Rated operation current Ie at AC-3, 400 V -
12 Ampere
Rated operation current Ie at AC-4, 400 V -
8.5 Ampere
Rated operation power at AC-3, 400 V -
5.5 Kilowatt
Rated operation power at AC-4, 400 V -
4 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
