3RT23371NP30

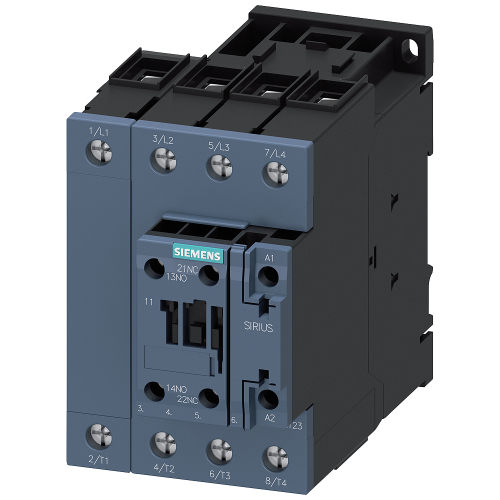

Contactor, 4 NO, AC-1: 110 A 175 ... 280 V AC/DC,varistor, 4-pole, 4 NO, Size S2, Screw terminal 1 N

Manufacturer's No: 3RT2337-1NP30     Manufacturer: Siemens

Availability Back Order

£365.20
  • Contactor for AC-1 applications
  • Rated current: 110 A
  • Rated voltage: 400 V at 40°C
  • 4-pole configuration
  • Operating voltage: 175-280 V AC/DC, 50/60 Hz
  • Integrated varistor for protection
  • Auxiliary contacts: 1 NO + 1 NC
  • Screw terminal connection
  • Size: S2

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order

Control kit for motor contactors Size S2, S3

Product Code - 3RT29364MC00
Price £6.69
Back Order

Spare part

Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT2337-1NP30
Net Weight -
1.26kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Number of normally closed contacts as main contact -
-
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
175 Volt
Rated control supply voltage Us at AC 60HZ -
175 Volt
Rated control supply voltage Us at DC -
175 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
4
Rated control supply voltage at AC 50 Hz -
175 Volt
Rated control supply voltage at AC 60 Hz -
175 Volt
Rated control supply voltage at DC -
175 Volt
Rated operation current Ie at AC-1, 400 V -
110 Ampere
Rated operation current Ie at AC-3, 400 V -
38 Ampere
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC

Availability Back Order

£365.20
