3RV10110AA15

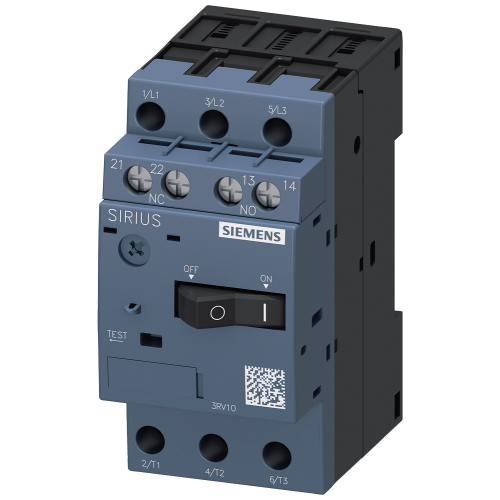

Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.11...0.16 A N-release 2.1 A Scre

Manufacturer's No: 3RV1011-0AA15     Manufacturer: Siemens

Availability Back Order

£77.22

This product has been superseded by

3RV20110AA15

Please check compatibility before purchasing.

  • Circuit breaker size: S00
  • Motor protection
  • CLASS 10
  • A-release: 0.11...0.16 A
  • N-release: 2.1 A
  • Screw terminal
  • Standard switching capacity
  • Transverse auxiliary switch: 1 NO + 1 NC

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order

Push-in lug

Product Code - 3RV29280B
Price £0.33
Back Order
Price £0.0233
Back Order

Component part

Follow-up article

Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Question and Answer (Q&A video)
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RV1011-0AA15
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
With thermal protection -
With thermal overload protection -
Type of control element -
Rocker lever
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
2.1 Ampere
Degree of protection (IP rating) -
IP20
Depth -
75 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
90 Millimetre
Number of poles -
3
Overload release current setting -
0.11 Ampere
Phase failure sensitive -
Rated operating voltage -
690 Volt
Rated operation power at AC-3, 230 V -
0 Kilowatt
Rated operation power at AC-3, 400 V -
0.04 Kilowatt
Rated permanent current Iu -
0.16 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
100 kiloampere
Switch off technique -
Magnetic
Type of electrical connection of main circuit -
Screw connection
Width -
45 Millimetre
With integrated auxiliary switch -

Availability Back Order

£77.22
Sign in or Register for customer prices.

This product has been superseded by

3RV20110AA15

Please check compatibility before purchasing.
