3RV10314EA15

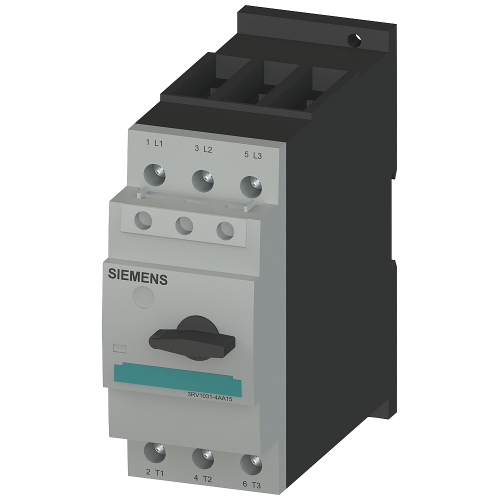

Circuit breaker size S2 for motor protection, Class 10 A-release 22...32 A Short-circuit release 416

Manufacturer's No: 3RV1031-4EA15     Manufacturer: Siemens
Circuit breaker size S2 for motor protection, Class 10 A-release 22...32 A Short-circuit release 416

Availability On Request

POA

This product has been superseded by

3RV20314EA15

Please check compatibility before purchasing.

  • Circuit breaker size: S2
  • Motor protection class: Class 10
  • A-release: 22...32 A
  • Short-circuit release: 416 A
  • Screw terminal with integrated auxiliary switch
  • Phased-out product
  • Successor: SIRIUS 3RV2
  • Preferred successor type: 3RV2031-4EA15


Product

Manufacturer Material ID -
3RV1031-4EA15
Net Weight -
1.06kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Switch off technique -
UN
Rated operation power at AC-3, 230 V -
- Kilowatt
Adjustment range undelayed short-circuit release -
- Ampere
Device construction -
UN
Width -
55 Millimetre
Height -
140 Millimetre
Depth -
149 Millimetre
Rated operation power at AC-3, 400 V -
15 Kilowatt
With integrated auxiliary switch -
Rated permanent current Iu -
32 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
22 Ampere
Degree of protection (IP) -
IP20
Type of electrical connection of main circuit -
Screw connection
Type of control element -
Turn button
Rated short-circuit breaking capacity lcu at 400 V, AC -
50 kiloampere
Phase failure sensitive -

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3RV20314EA15

Please check compatibility before purchasing.
