3RV13647AN10

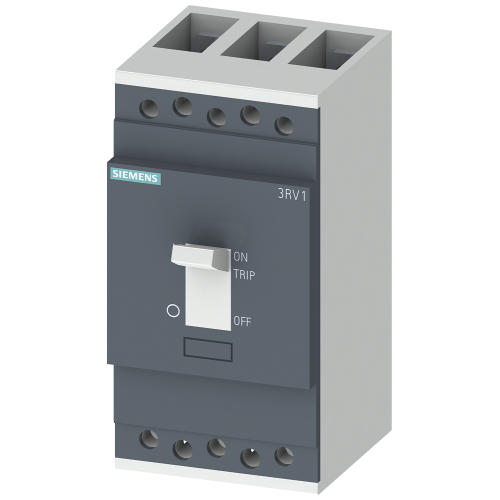

Molded case circuit breaker 3RV1 for starter combination increased switching capacity Rated current

Manufacturer's No: 3RV1364-7AN10     Manufacturer: Siemens
Molded case circuit breaker 3RV1 for starter combination increased switching capacity Rated current

Availability On Request

POA

This product has been superseded by

3VA21100MS320AA0

Please check compatibility before purchasing.

  • Molded case circuit breaker 3RV1
    • Increased switching capacity
    • Rated current
    • End of product lifecycle: 01/10/23
    • Successor: 3VA2110-0MS32-0AA0


Product

Manufacturer Material ID -
3RV1364-7AN10
Net Weight -
3.90kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Overload release current setting -
- Ampere
Switch off technique -
UN
Rated operation power at AC-3, 230 V -
- Kilowatt
Degree of protection (IP) -
IP20
Width -
105 Millimetre
Height -
205 Millimetre
Depth -
103.5 Millimetre
Rated operation power at AC-3, 400 V -
55 Kilowatt
Rated permanent current Iu -
100 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Degree of protection (IP rating) -
IP20
Type of electrical connection of main circuit -
Screw connection
Type of control element -
Rocker lever
Rated short-circuit breaking capacity lcu at 400 V, AC -
200 kiloampere
Adjustment range undelayed short-circuit release -
1000 Ampere
Device construction -
Built-in device fixed built-in technique

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3VA21100MS320AA0

Please check compatibility before purchasing.
