3RV16111AG14

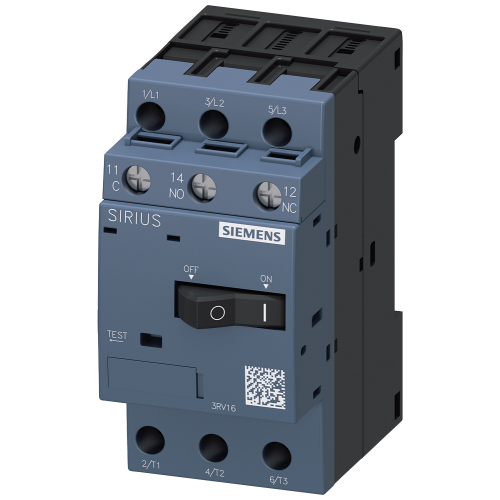

Voltage transformer Circuit breaker, Size S00 1.4 A, N-release 6 A, 1 CO with transverse auxiliary s

Manufacturer's No: 3RV1611-1AG14     Manufacturer: Siemens
Voltage transformer Circuit breaker, Size S00 1.4 A, N-release 6 A, 1 CO with transverse auxiliary s

Availability On Request

£310.28
  • Voltage transformer circuit breaker
  • Size S00
  • Rated current: 1.4 A
  • N-release current: 6 A
  • 1 CO contact configuration
  • Transverse auxiliary switch included

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request

Push-in lug

Product Code - 3RV29280B
Price £0.34
On Request
Price £0.02
On Request

Component part

Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Question and Answer (Q&A video)
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RV1611-1AG14
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Overload release current setting -
- Ampere
Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP20
Number of auxiliary contacts as normally open contact -
1
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as change-over contact -
1
Rated voltage -
20 Volt
Position of connection for main current circuit -
Other
Type of control element -
Rocker
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
50 kiloampere
Adjustment range undelayed short-circuit release -
6 Ampere
DIN rail (top hat rail) mounting optional -
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Depth -
75 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
90 Millimetre
Number of poles -
3
Phase failure sensitive -
Rated operating voltage -
400 Volt
Rated permanent current Iu -
1.4 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
50 kiloampere
Switch off technique -
Magnetic
Type of electrical connection of main circuit -
Screw connection
Width -
45 Millimetre
With integrated auxiliary switch -

Availability On Request
