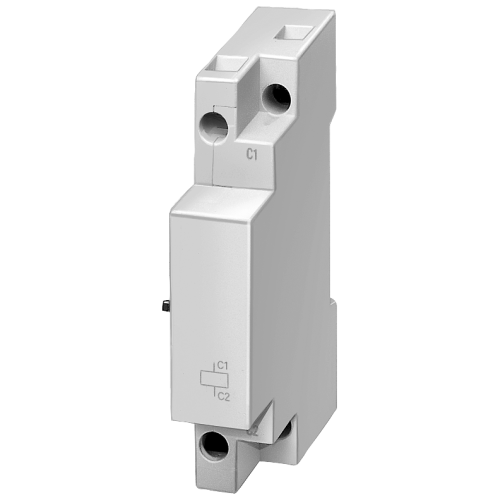

3RV19021DB0

Shunt release 20...24 V AC, 50/60 Hz, 100% ON period 20-70 V AC, 50/60 Hz, 5 s ON period 20-70 V DC,

Manufacturer's No: 3RV1902-1DB0     Manufacturer: Siemens
Shunt release 20...24 V AC, 50/60 Hz, 100% ON period 20-70 V AC, 50/60 Hz, 5 s ON period 20-70 V DC,

Availability Back Order

POA

This product has been superseded by

3RV29021DB0

Please check compatibility before purchasing.

  • Shunt release voltage: 20-24 V AC, 50/60 Hz
  • ON period at 100%: 5 seconds for 20-70 V AC, 50/60 Hz
  • ON period at 100%: 5 seconds for 20-70 V DC
  • Compatible with circuit breaker sizes S00 to S3
  • Phased-out product, successor is SIRIUS 3RV2
  • Preferred successor type: 3RV2902-1DB0


Product

Manufacturer Material ID -
3RV1902-1DB0
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Initial value of the undelayed short-circuit release - setting range -
- Ampere
End value adjustment range undelayed short-circuit release -
- Ampere
Number of contacts as normally open contact -
-
Type of electric connection -
Screw connection
Rated control supply voltage Us at AC 50HZ -
20 Volt
Rated control supply voltage Us at AC 60HZ -
20 Volt
Voltage type for actuating -
AC
Number of contacts as normally closed contact -
0
Number of contacts as change-over contact -
0

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

3RV29021DB0

Please check compatibility before purchasing.
