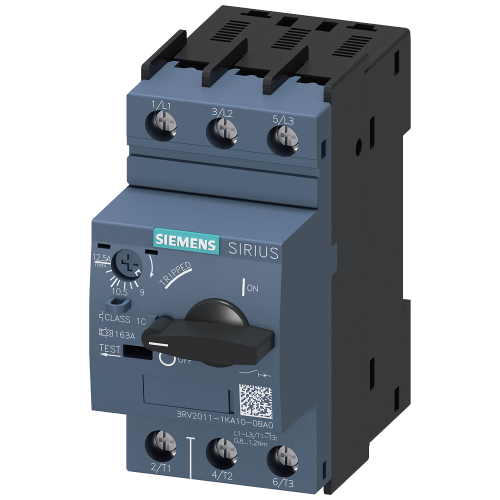

Special type Circuit breaker size S00 for motor protection, CLASS 10 A-release 9...12 A N-release 16

3RV20111KA100BA0

Special type Circuit breaker size S00 for motor protection, CLASS 10 A-release 9...12 A N-release 16

Produced by Siemens

Availability Back Order

Price - £96.11
Special type Circuit breaker size S00 for motor protection, CLASS 10 A-release 9...12 A N-release 163 A screw terminal Standard switching capacity Ambient temperature -50 °C 500 switching cycles
No alternatives available for this product.
Product
Manufacturer Material ID -
3RV2011-1KA10-0BA0
Net Weight -
0.35kg
Additional Product Information
Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601
Technical Specification
Width -
45 Millimetre
Height -
97 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
5.5 Kilowatt
Rated permanent current Iu -
12.5 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
9 Ampere
Rated operation power at AC-3, 230 V -
3 Kilowatt
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
163 Ampere
