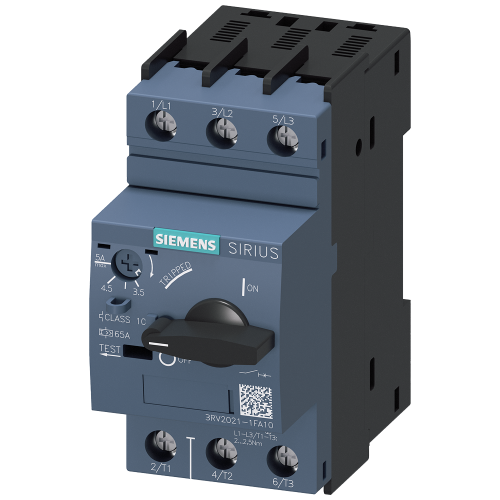

Circuit breaker size S0 for motor protection, CLASS 10 A-release 3.5...5 A N release 65 A screw term

3RV20211FA10

Circuit breaker size S0 for motor protection, CLASS 10 A-release 3.5...5 A N release 65 A screw term

Produced by Siemens

Availability In Stock

Price - £64.29
Circuit breaker size S0 for motor protection, CLASS 10 A-release 3.5...5 A N release 65 A screw terminal Standard switching capacity
No alternatives available for this product.
Product
Manufacturer Material ID -
3RV2021-1FA10
Net Weight -
0.36kg
Additional Product Information
Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601
Technical Specification
Width -
45 Millimetre
Height -
97 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
1.5 Kilowatt
Rated permanent current Iu -
5 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
3.5 Ampere
Rated operation power at AC-3, 230 V -
1.1 Kilowatt
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
65 Ampere
