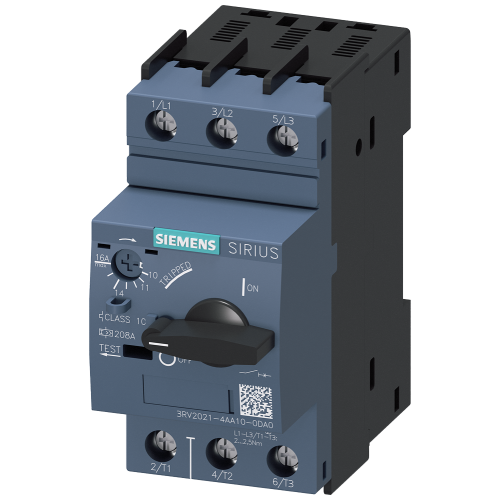

Circuit breaker size S0 for system protection without phase failure protection A-release 10...16 A N-release 208 A screw terminal Standard switching capacity

3RV20214AA100DA0

Circuit breaker size S0 for system protection without phase failure protection A-release 10...16 A N-release 208 A screw terminal Standard switching capacity

Produced by Siemens

Availability Back Order

Price - £96.77
Circuit breaker size S0 for system protection without phase failure protection A-release 10...16 A N-release 208 A screw terminal Standard switching capacity
No alternatives available for this product.
Product
Manufacturer Material ID -
3RV2021-4AA10-0DA0
Net Weight -
0.37kg
Additional Product Information
Commodity Code -
85362090
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601
Technical Specification
Rated permanent current Iu -
16 Ampere
Number of poles -
3
Overload release current setting -
10 Ampere
Rated voltage -
20 Volt
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range undelayed short-circuit release -
208 Ampere
