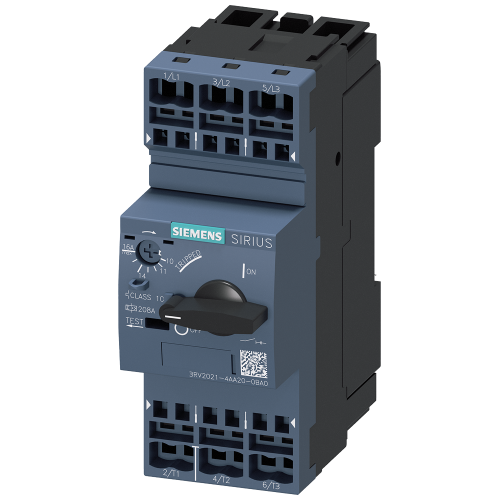

Special type Circuit breaker size S0 for motor protection, CLASS 10 A-release 10...16 A N-release 208 A Spring-type terminal Standard switching capacity Ambient temperature -50 °C 500 switching cycle

3RV20214AA200BA0

Special type Circuit breaker size S0 for motor protection, CLASS 10 A-release 10...16 A N-release 208 A Spring-type terminal Standard switching capacity Ambient temperature -50 °C 500 switching cycle

Produced by Siemens

Availability Back Order

Price - £103.40
Special type Circuit breaker size S0 for motor protection, CLASS 10 A-release 10...16 A N-release 208 A Spring-type terminal Standard switching capacity Ambient temperature -50 °C 500 switching cycles
No alternatives available for this product.
Product
Manufacturer Material ID -
3RV2021-4AA20-0BA0
Net Weight -
0.42kg
Additional Product Information
Commodity Code -
85362010
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601
Technical Specification
Width -
45 Millimetre
Height -
119 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Rated permanent current Iu -
16 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
10 Ampere
Rated operation power at AC-3, 230 V -
4 Kilowatt
Rated short-circuit breaking capacity lcu at 400 V, AC -
55 kiloampere
Adjustment range undelayed short-circuit release -
208 Ampere
