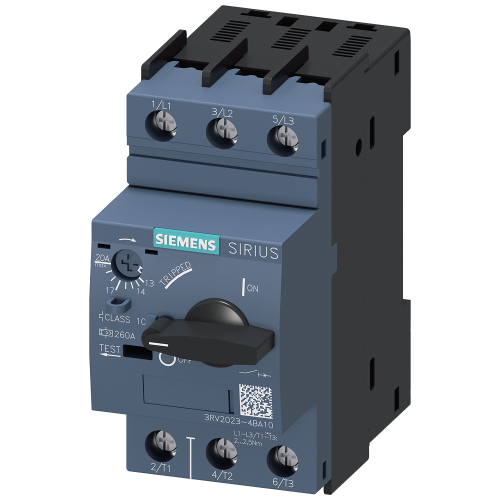

Circuit breaker size S0 for motor protection, CLASS 10 A-release 14...20 A N-release 260 A screw terminal Switching capacity 30 kA at 600 V according to UL/CSA

3RV20234BA10

Circuit breaker size S0 for motor protection, CLASS 10 A-release 14...20 A N-release 260 A screw terminal Switching capacity 30 kA at 600 V according to UL/CSA

Produced by Siemens

Availability Back Order

Price - £74.90
Circuit breaker size S0 for motor protection, CLASS 10 A-release 14...20 A N-release 260 A screw terminal Switching capacity 30 kA at 600 V according to UL/CSA
No alternatives available for this product.
Product
Manufacturer Material ID -
3RV2023-4BA10
Net Weight -
0.38kg
Additional Product Information
Commodity Code -
85362090
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601
Technical Specification
Width -
45 Millimetre
Height -
97 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Rated permanent current Iu -
20 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
13 Ampere
Rated operation power at AC-3, 230 V -
5.5 Kilowatt
Rated short-circuit breaking capacity lcu at 400 V, AC -
55 kiloampere
Adjustment range undelayed short-circuit release -
260 Ampere
