3RV21314BA10

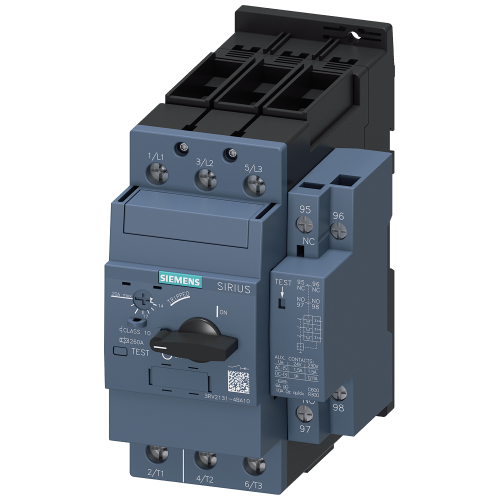

Circuit breaker size S2 for motor protection, CLASS 10 with overload relay function A-release 14...2

Manufacturer's No: 3RV2131-4BA10     Manufacturer: Siemens
Circuit breaker size S2 for motor protection, CLASS 10 with overload relay function A-release 14...2

Availability On Request

£186.25
  • Circuit breaker size: S2
  • Motor protection class: CLASS 10
  • Overload relay function:
    • A-release: 14-20 A
    • N-release: 260 A
  • Screw terminal
  • Standard switching capacity

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Price £0.02
On Request
Question and Answer (Q&A video)
Presentation video
Product video
Question and Answer (Q&A video)
Product video
Presentation video


Product

Manufacturer Material ID -
3RV2131-4BA10
Net Weight -
1.14kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
With thermal protection -
With thermal overload protection -
Type of control element -
Rotating button
Rated short-circuit breaking capacity lcu at 400 V, AC -
65 kiloampere
Adjustment range undelayed short-circuit release -
260 Ampere
Degree of protection (IP rating) -
IP20
Depth -
149 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
140 Millimetre
Number of poles -
3
Overload release current setting -
14 Ampere
Phase failure sensitive -
Rated operating voltage -
690 Volt
Rated operation power at AC-3, 230 V -
5.5 Kilowatt
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Rated permanent current Iu -
20 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
65 kiloampere
Switch off technique -
Magnetic
Type of electrical connection of main circuit -
Screw connection
Width -
75 Millimetre

Availability On Request

£186.25
