3RV21314TA10

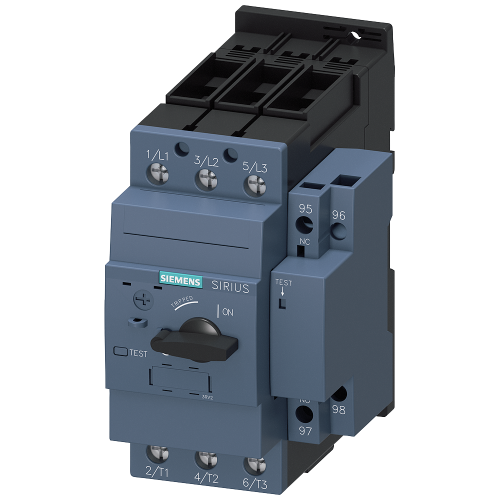

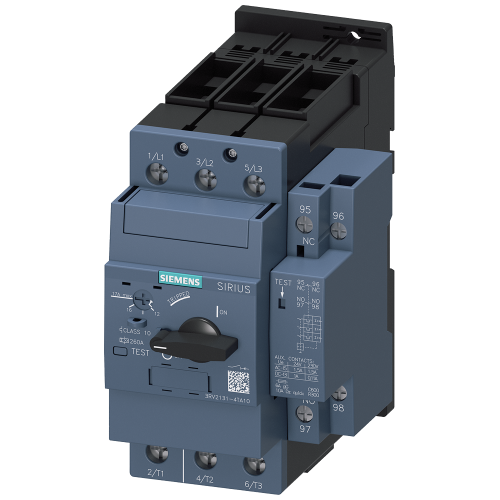

Circuit breaker size S2 for motor protection, CLASS 10 with overload relay function A-release 12...1

Manufacturer's No: 3RV2131-4TA10     Manufacturer: Siemens
Circuit breaker size S2 for motor protection, CLASS 10 with overload relay function A-release 12...1

View 3D

Availability Back Order

£180.28
  • Circuit breaker size: S2
  • Motor protection class: CLASS 10
  • Overload relay function:
    • A-release: 12-17 A
    • N-release: 260 A
  • Standard switching capacity

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order
Question and Answer (Q&A video)
Presentation video
Product video
Question and Answer (Q&A video)
Product video
Presentation video


Product

Manufacturer Material ID -
3RV2131-4TA10
Net Weight -
1.14kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
With thermal protection -
With thermal overload protection -
Type of control element -
Rotating button
Rated short-circuit breaking capacity lcu at 400 V, AC -
65 kiloampere
Adjustment range undelayed short-circuit release -
260 Ampere
Degree of protection (IP rating) -
IP20
Depth -
149 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
140 Millimetre
Number of poles -
3
Overload release current setting -
12 Ampere
Phase failure sensitive -
Rated operating voltage -
690 Volt
Rated operation power at AC-3, 230 V -
4 Kilowatt
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Rated permanent current Iu -
17 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
65 kiloampere
Switch off technique -
Magnetic
Type of electrical connection of main circuit -
Screw connection
Width -
75 Millimetre

Availability Back Order

£180.28
