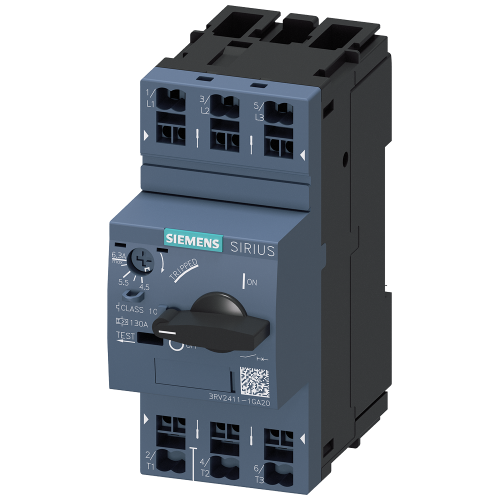

3RV24111GA20

Circuit breaker size S00 for transformer protection A-release 4.5...6.3 A N release 130 A Spring-typ

Manufacturer's No: 3RV2411-1GA20     Manufacturer: Siemens
Circuit breaker size S00 for transformer protection A-release 4.5...6.3 A N release 130 A Spring-typ

View 3D

Availability Back Order

£70.26
  • Circuit breaker size: S00
  • Transformer protection
  • A-release: 4.5...6.3 A
  • N release: 130 A
  • Spring-type terminal
  • Standard switching capacity

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order

Push-in lug

Product Code - 3RV29280B
Price £0.33
Back Order
Price £0.0233
Back Order
Question and Answer (Q&A video)
Presentation video
Product video
Question and Answer (Q&A video)
Product video
Presentation video


Product

Manufacturer Material ID -
3RV2411-1GA20
Net Weight -
0.37kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP20
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as change-over contact -
0
Rated voltage -
20 Volt
Position of connection for main current circuit -
Other
Type of control element -
Toggle
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
100 kiloampere
Adjustment range undelayed short-circuit release -
130 Ampere
Suitable for DIN rail (top hat rail) mounting -
DIN rail (top hat rail) mounting optional -
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Depth -
97 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
106 Millimetre
Number of poles -
3
Overload release current setting -
4.5 Ampere
Phase failure sensitive -
Rated operating voltage -
690 Volt
Rated operation power at AC-3, 230 V -
1.5 Kilowatt
Rated operation power at AC-3, 400 V -
2.2 Kilowatt
Rated permanent current Iu -
6.3 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
100 kiloampere
Switch off technique -
Magnetic
Type of electrical connection of main circuit -
Spring clamp connection
Width -
45 Millimetre

Availability Back Order

£70.26
