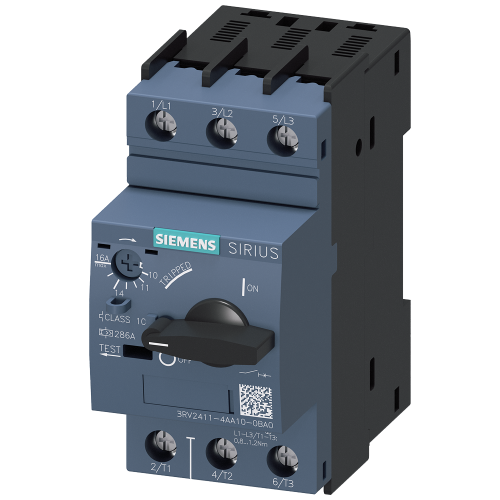

3RV24114AA100BA0

Special type circuit breaker, size S00, for transformer protection A-release 11-16 A

Manufacturer's No: 3RV2411-4AA10-0BA0     Manufacturer: Siemens
Special type circuit breaker, size S00, for transformer protection A-release 11-16 A

View 3D

Availability Back Order

£105.39
  • Special type Circuit breaker size S00 designed for transformer protection
  • A-release: 10-16 A
  • N-release: 286 A
  • Screw terminal for easy installation
  • Standard switching capacity
  • Ambient temperature range: -50°C
  • Rated for 500 switching cycles

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order

Push-in lug

Product Code - 3RV29280B
Price £0.33
Back Order
Price £0.02
Back Order
Question and Answer (Q&A video)
Presentation video
Product video
Question and Answer (Q&A video)
Product video
Presentation video


Product

Manufacturer Material ID -
3RV2411-4AA10-0BA0
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Rated voltage -
- Volt
Adjustment range short-term delayed short-circuit release -
- Ampere
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as change-over contact -
0
Degree of protection (IP) -
IP20
Position of connection for main current circuit -
Other
Type of control element -
Toggle
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range undelayed short-circuit release -
286 Ampere
Degree of protection (IP rating) -
IP20
Depth -
97 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
97 Millimetre
Number of poles -
3
Overload release current setting -
10 Ampere
Phase failure sensitive -
Rated operating voltage -
690 Volt
Rated operation power at AC-3, 230 V -
4 Kilowatt
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Rated permanent current Iu -
16 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
55 kiloampere
Switch off technique -
Magnetic
Type of electrical connection of main circuit -
Screw connection
Width -
45 Millimetre

Availability Back Order

£105.39
