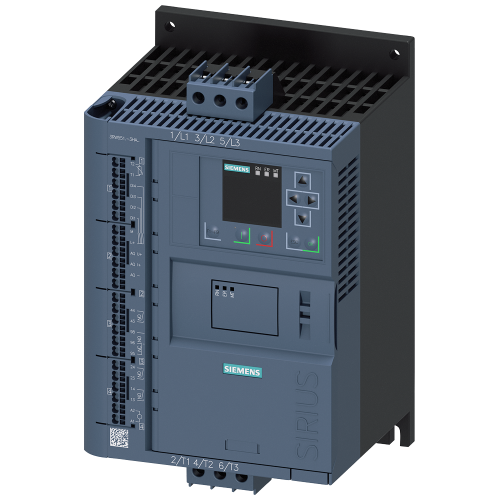

3RW55163HA14

SIRIUS soft starter 200-480 V 32 A, 110-250 V AC spring-type terminals

Manufacturer's No: 3RW5516-3HA14     Manufacturer: Siemens

Availability Back Order

£1,185.00
  • SIRIUS soft starter
  • Input Voltage: 200-480 V
  • Current Rating: 32 A
  • Control Voltage: 110-250 V AC
  • Terminal Type: Spring-type

Accessories

Presentation video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Presentation video
Question and Answer (Q&A video)
Product video
Instructional video
Instructional video
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RW5516-3HA14
Net Weight -
2.30kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at 40 ∞C Tu -
32 Ampere
Degree of protection (NEMA) -
UN
With display -
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Degree of protection (IP) -
IP00
Degree of protection (IP rating) -
IP00
Display -
Function -
Single direction
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Rated operating voltage Ue -
200 Volt
Rated operation current Ie at 40 °C Tu -
32 Ampere
Rated power three-phase motor, inline, at 230 V -
7.5 Kilowatt
Rated power three-phase motor, inline, at 400 V -
15 Kilowatt
Rated power three-phase motor, inside delta, at 230 V -
15 Kilowatt
Rated power three-phase motor, inside delta, at 400 V -
22 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Torque control -
Voltage type for actuating -
AC

Availability Back Order

£1,185.00
