3SE52340LD031AE2

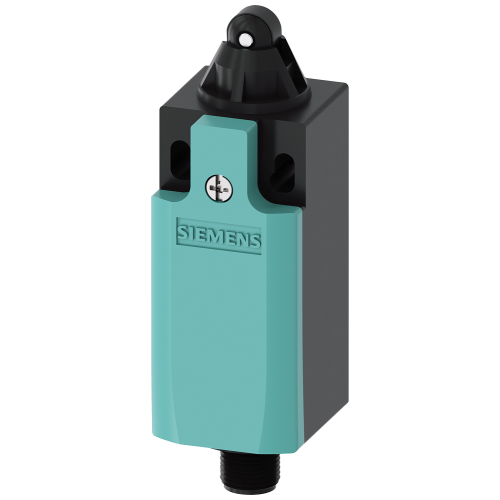

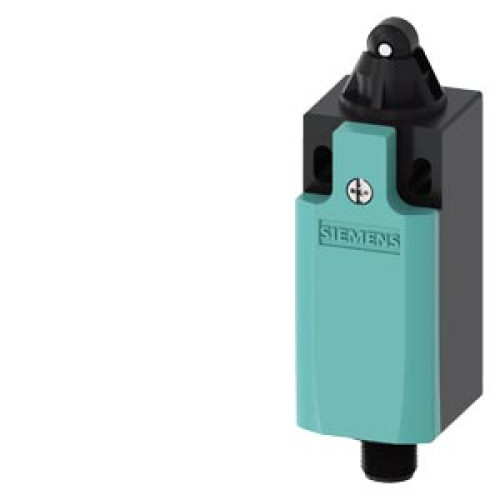

Position switch, plastic encl., EN50047, 31 mm, 1 NO/2 NC, 5-pole

Manufacturer's No: 3SE5234-0LD03-1AE2     Manufacturer: Siemens
Position switch, plastic encl., EN50047, 31 mm, 1 NO/2 NC, 5-pole

View 3D

Availability Back Order

£44.10
  • Position switch plastic enclosure according to EN 50047
  • 31 mm size with 1 normally open (NO) and 2 normally closed (NC) quick action contacts
  • Equipped with an M12 connector with 5 poles
  • Pin assignment: Pin1=21, Pin4=22, Pin2=31, Pin5=32 for maximum 125 V and 4 A
  • Roller plunger with 10 mm plastic roller
  • Compatible with all SIMATIC ET200* compact block I/O modules

Accessories

Component part

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SE5234-0LD03-1AE2
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122213

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Diameter sensor -
- Millimetre
Material housing -
Plastic
Type of electric connection -
Plug-in connection M12
Degree of protection (IP) -
IP65
Type of control element -
Roller cam
Type of interface -
None
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
33 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
89.7 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
0
Number of safety auxiliary contacts -
2
Rated operation current Ie at AC-15, 125 V -
4 Ampere
Rated operation current Ie at AC-15, 24 V -
4 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Quick-break switch
Type of interface for safety communication -
None
Width sensor -
31 Millimetre

Availability Back Order

£44.10
