3SE54130CP201EA2

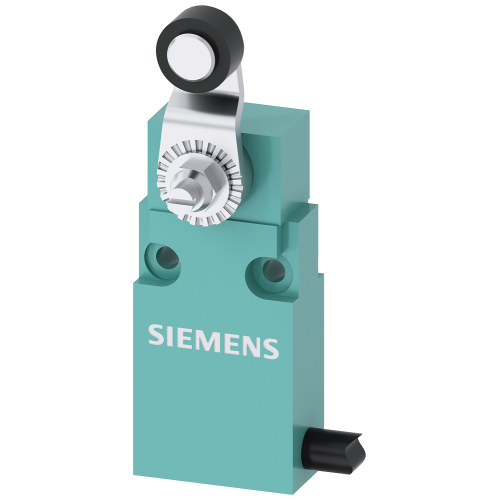

Compact switch with connection cable 2 m, Snap-action contacts 1 NO+1 NC twist lever with same desig

Manufacturer's No: 3SE5413-0CP20-1EA2     Manufacturer: Siemens
Compact switch with connection cable 2 m, Snap-action contacts 1 NO+1 NC twist lever with same desig

Availability Back Order

£47.97
  • Compact switch with snap-action contacts
  • Connection cable length: 2 meters
  • Twist lever design similar to 3SE3 (Precursor program)
  • 1 Normally Open (NO) contact and 1 Normally Closed (NC) contact
Product video
Product video


Product

Manufacturer Material ID -
3SE5413-0CP20-1EA2
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 24 V -
- Ampere
Rated operation current Ie at DC-13, 24 V -
- Ampere
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Metal
Degree of protection (IP) -
IP67
Type of interface -
None
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Lacquered
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
16 Millimetre
Housing material -
Metal
Interface type -
None
Length of sensor -
95 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
1
Rated operation current Ie at AC-15, 125 V -
6 Ampere
Rated operation current Ie at AC-15, 230 V -
3 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 230 V -
0.27 Ampere
Suitable for safety functions -
Switching function -
Quick-break switch
Type of control element -
Rotary lever
Type of electric connection -
Other
Type of interface for safety communication -
None
Width sensor -
30 Millimetre
