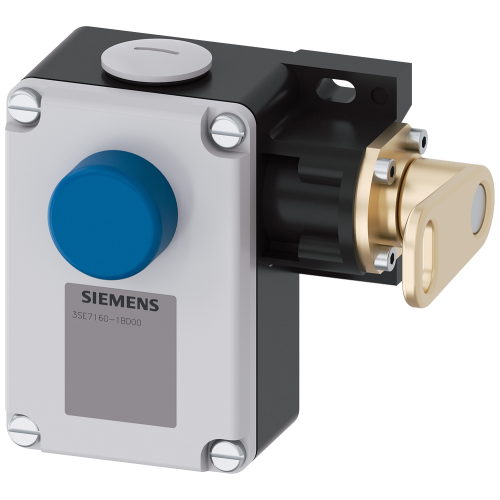

3SE71601BD00

SIRIUS cable-operated switch+lever metal encl., 2xM25x1.5 1 NO + 1 NC, latching EN ISO 13850

Manufacturer's No: 3SE7160-1BD00     Manufacturer: Siemens
SIRIUS cable-operated switch+lever metal encl., 2xM25x1.5 1 NO + 1 NC, latching EN ISO 13850

Availability On Request

£401.07
  • Cable-operated switch and lever
  • Metal enclosure
  • 2 x M25 x 1.5
  • 1 NO+1 NC, latching
  • EN ISO 13850 compliant
  • Pushbutton release
  • 2-sided operation
  • Suitable for wire lengths up to 2 x 100 m

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3SE7160-1BD00
Net Weight -
0.89kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Colour -
UN
Number of actuation directions -
-
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP65
Ambient temperature -
-25 Degrees celsius
Degree of protection (IP rating) -
IP65
Max. length of pull cord -
200 Metre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
With tension indication -

Availability On Request

£401.07
