3SF11241LA001BA2

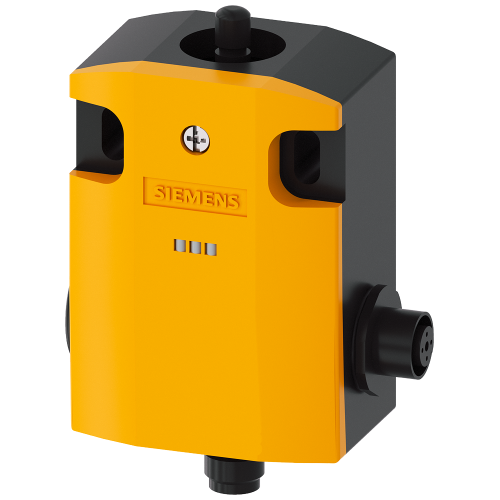

Basic switch without actuator head, metal enclosure, M12 plug, ASIsafe

Manufacturer's No: 3SF1124-1LA00-1BA2     Manufacturer: Siemens
Basic switch without actuator head, metal enclosure, M12 plug, ASIsafe

View 3D

Availability Back Order

£152.23
  • Basic switch without actuator head
  • Metal enclosure, 56 mm wide
  • ASIsafe integrated AS-i status: 1:F-IN1, 2:F-IN2, 3:AS-i/FAULT
  • Snap-action contacts 1 NC with M12 connector 4-pole
  • Channel 1 to NC, Channel 2 to M12 socket on the right

Selectable mandatory product



Product

Manufacturer Material ID -
3SF1124-1LA00-1BA2
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated operation current Ie at AC-15, 125 V -
- Ampere
Rated operation current Ie at AC-15, 24 V -
- Ampere
Rated operation current Ie at DC-13, 125 V -
- Ampere
Rated operation current Ie at DC-13, 24 V -
- Ampere
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Metal
Type of electric connection -
Plug-in connection M12
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP) -
IP66/IP67
Type of control element -
None
Type of interface -
None
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Lacquered
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP66/IP67
Forced opening -
Height of sensor -
37.8 Millimetre
Housing material -
Metal
Length of sensor -
99.7 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
0
Number of safety auxiliary contacts -
1
Suitable for safety functions -
Switching function -
Quick-break switch
Type of interface for safety communication -
Other
Width sensor -
56 Millimetre
With status indication -

Availability Back Order

£152.23
