3SU11500AB103CA0

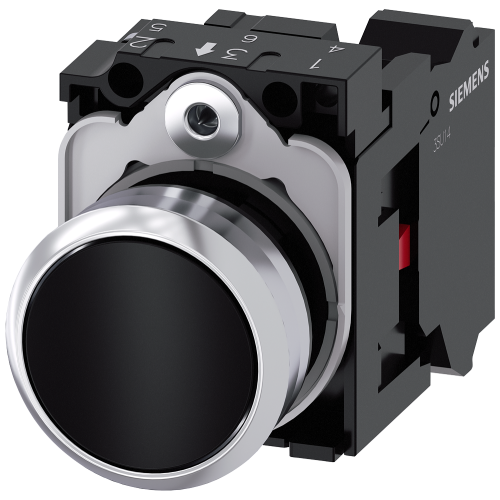

Pushbutton, 22 mm, round, metal, shiny, black, pushbutton, flat, momentary contact type, 1 NC, Spring-type terminal

Manufacturer's No: 3SU1150-0AB10-3CA0     Manufacturer: Siemens
Pushbutton, 22 mm, round, metal, shiny, black, pushbutton, flat, momentary contact type, 1 NC, Spring-type terminal

View 3D

Availability Back Order

£15.10
  • 22 mm round metal pushbutton
  • Shiny black finish
  • Flat momentary contact type
  • 1 Normally Closed (NC) contact
  • Spring-type terminal

Accessories

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1150-0AB10-3CA0
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Construction type lens -
UN
Supply voltage lamp -
- Volt
Degree of protection (IP) -
IP67/IP69K
Type of button -
Flat
Colour front ring -
Chrome
Colour button -
Black
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Height opening -
11 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Plastic
Number of command positions -
1
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
0
Spring-return -
Type of electric connection -
Spring clamp connection
Width opening -
29.5 Millimetre
With front ring -

Availability Back Order

£15.10
