3SU12016AG241AA0

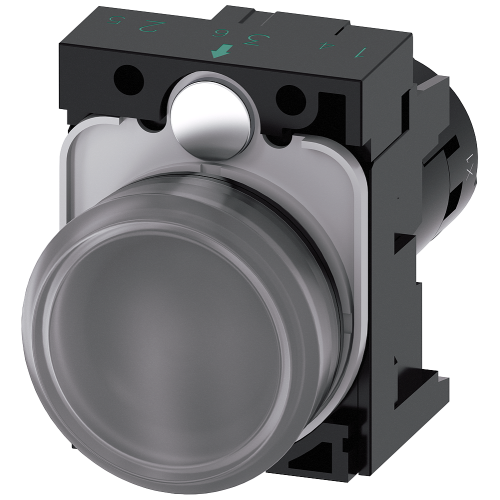

Indicator light with glow lamp, compact, 22 mm, round, plastic, clear with red-green-yellow LED, len

Manufacturer's No: 3SU1201-6AG24-1AA0     Manufacturer: Siemens
Indicator light with glow lamp, compact, 22 mm, round, plastic, clear with red-green-yellow LED, len

Availability Available to order

POA
  • Indicator light with glow lamp
  • Compact size: 22 mm round plastic housing
  • Clear lens with red-green-yellow LED
  • Operating voltage: 6-24 V AC/DC
  • Energy-efficient LED technology for high luminosity
  • Easy installation with innovative snap-on concept
  • Suitable for industrial and outdoor use with high degree of protection
  • Resistant to dust, oils, and caustic solutions
  • Can be connected to controller via PROFINET, AS-Interface, or IO-Link
  • Online Configurator for easy selection and ordering

Read more

  • Available in several colors and voltage variants
  • Compact unit with integrated lighting and holders
  • SIRIUS ACT: Control and signaling with performance and simplicity

Follow-up article

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1201-6AG24-1AA0
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85318070
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121534

Technical Specification

Colour lens -
Other
Colour front ring -
Other
Degree of protection (IP) -
IP67/IP69K
With light source -
Material front ring -
Other
Type of lamp socket -
Other
Construction type lens -
Round
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Height opening -
12.9 Millimetre
Hole diameter -
22.3 Millimetre
Light source included -
Number of indicator lights -
1
Rated operating voltage Ue -
12 Volt
Type of electric connection -
Screw connection
Type of lens -
High
Voltage type -
AC/DC
Width opening -
29.5 Millimetre
Commodity Code -
85318070

Availability Available to order

POA
Sign in or Register for customer prices.

Additional Information
