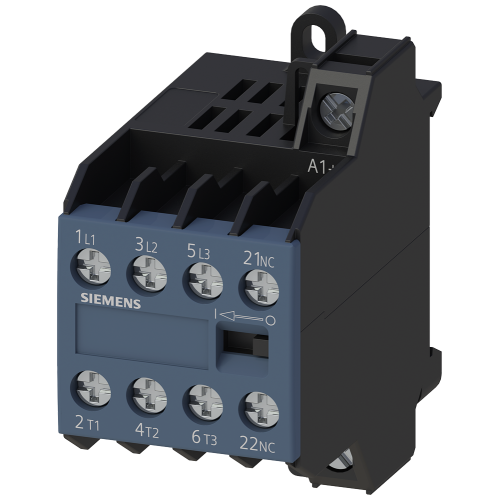

3TG10010BB4

Power relay, AC-3 8.4 A, 4kW / 400 V 3 NO+1 NC, 24 V DC 3 pole, screw terminal

Manufacturer's No: 3TG1001-0BB4     Manufacturer: Siemens
Power relay, AC-3 8.4 A, 4kW / 400 V 3 NO+1 NC, 24 V DC 3 pole, screw terminal

Availability In Stock

£50.53
  • Power relay for AC-3 applications
  • 8.4 A current rating
  • 4 kW power rating at 400 V
  • 3-pole configuration
  • Coil voltage: 24 V DC
  • 1 normally closed auxiliary contact
  • Screw terminal connection
Product video
Product video


Product

Manufacturer Material ID -
3TG1001-0BB4
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
TR
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
20 Ampere
Rated operation current Ie at AC-3, 400 V -
8.4 Ampere
Rated operation power at AC-3, 400 V -
4 Kilowatt
Rated operation power NEMA -
3.67749375 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC

Availability In Stock
