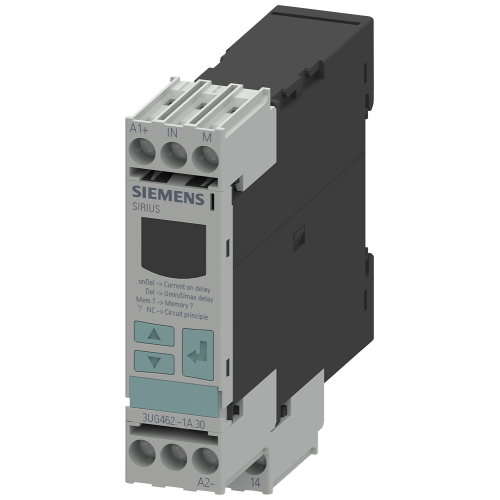

3UG46221AA30

Digital monitoring relay Current monitoring, 22.5 mm from 0.05-10 A AC/DC 0vershoot and undershoot S

Manufacturer's No: 3UG4622-1AA30     Manufacturer: Siemens
Digital monitoring relay Current monitoring, 22.5 mm from 0.05-10 A AC/DC 0vershoot and undershoot S

Availability Back Order

£139.85
  • Digital monitoring relay for current monitoring
  • Measurement range: 0.05-10 A AC/DC
  • Compact size: 22.5 mm
  • Supply voltage: 24 V AC/DC (50 to 60 Hz)
  • Features overshoot and undershoot protection
  • Suitable for both DC and AC without galvanic isolation
  • Adjustable ON delay and noise pulses delay: 0.1 to 20 s
  • Hysteresis range: 0.01 to 5 A
  • Equipped with 1 change-over contact
  • Option for fault buffer screw terminal

Read more

  • Successor product to 3UG3522-1AC.

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3UG4622-1AA30
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Rated control supply voltage Us at AC 50HZ -
20.4 Volt
Rated control supply voltage Us at AC 60HZ -
20.4 Volt
Rated control supply voltage Us at DC -
20.4 Volt
Rated control supply voltage at AC 50 Hz -
20.4 Volt
Rated control supply voltage at AC 60 Hz -
20.4 Volt
Rated control supply voltage at DC -
20.4 Volt
Voltage type for actuating -
AC/DC
Contains function DC-voltage over current -
Contains function DC-voltage under current -
Current measurement range -
0.05 Ampere
Depth -
91 Millimetre
Function DC-current hysteresis -
Height -
92 Millimetre
Max. permitted delay-on energization time -
20 Second
Max. permitted off-delay time -
20 Second
Min. adjustable delay-on energization time -
0.1 Second
Min. adjustable off-delay time -
0.1 Second
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Single-phase over current possible -
Single-phase under current possible -
Type of electric connection -
Screw connection
Width -
22.5 Millimetre
With detachable clamps -

Availability Back Order

£139.85
