3UG46321AW30

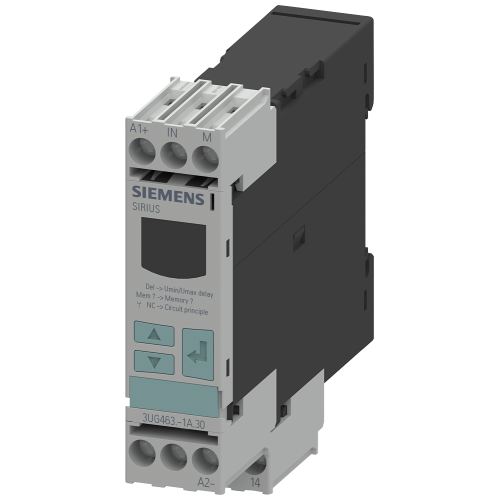

Digital monitoring relay Voltage monitoring, 22.5 mm from 10 to 600 V AC/DC 0vershoot and undershoot

Manufacturer's No: 3UG4632-1AW30     Manufacturer: Siemens
Digital monitoring relay Voltage monitoring, 22.5 mm from 10 to 600 V AC/DC 0vershoot and undershoot

View 3D

Availability In Stock

£153.11
  • Voltage monitoring relay for 10 to 600 V AC/DC
  • Overshoot and undershoot protection for 24 to 240 V AC/DC
  • Noise pulses delay range: 0.1 to 20 s
  • Hysteresis range: 0.1 to 300 V
  • 1 change-over contact
  • Successor product for 3UG3532-1AL20, 3UG3532-1AG20

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3UG4632-1AW30
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Voltage measurement range 2 -
- Volt
Max. permitted delay-on energization time -
- Second
Min. adjustable delay-on energization time -
- Second
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
AC/DC
Contains function DC-over voltage -
Contains function DC-under voltage -
Contains function DC-voltage hysteresis -
Depth -
91 Millimetre
Height -
92 Millimetre
Max. permitted off-delay time -
20 Second
Min. adjustable off-delay time -
0.1 Second
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Response value voltage -
10 Volt
Single-phase hysteresis possible -
Single-phase over voltage possible -
Single-phase under voltage possible -
Type of electric connection -
Screw connection
Type of voltage measurement range -
AC/DC
Voltage measurement range 1 -
10 Volt
Width -
22.5 Millimetre
With detachable clamps -

Availability In Stock

£153.11
