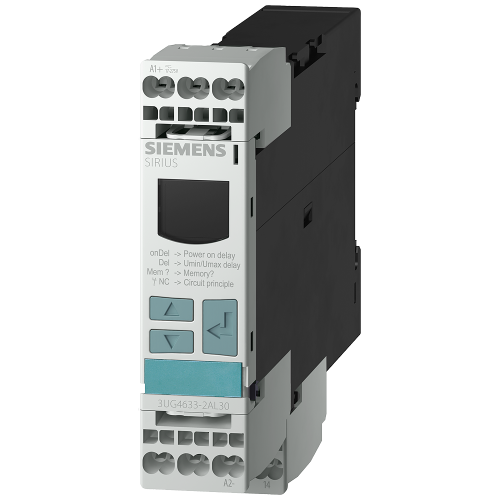

3UG46331AL30

Digital monitoring relay Voltage monitoring, 22.5 mm from 17-275 V AC/DC 0vershoot and undershoot se

Manufacturer's No: 3UG4633-1AL30     Manufacturer: Siemens
Digital monitoring relay Voltage monitoring, 22.5 mm from 17-275 V AC/DC 0vershoot and undershoot se

View 3D

Availability In Stock

£146.48
  • Voltage monitoring range: 17-275 V AC/DC
  • Compact size: 22.5 mm
  • Spike delay: 0.1 to 20 seconds
  • Hysteresis range: 0.1 to 150 V
  • Self-powered
  • 1 CO contact
  • Screw terminals for easy installation
  • Can be used with or without error buffer
  • Successor product for 3UG3534 and 3UG3535

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3UG4633-1AL30
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Voltage measurement range 2 -
- Volt
Rated control supply voltage Us at AC 50HZ -
17 Volt
Rated control supply voltage Us at AC 60HZ -
17 Volt
Rated control supply voltage Us at DC -
17 Volt
Rated control supply voltage at AC 50 Hz -
17 Volt
Rated control supply voltage at AC 60 Hz -
17 Volt
Rated control supply voltage at DC -
17 Volt
Voltage type for actuating -
AC/DC
Contains function DC-over voltage -
Contains function DC-under voltage -
Contains function DC-voltage hysteresis -
Depth -
91 Millimetre
Height -
92 Millimetre
Max. permitted delay-on energization time -
20 Second
Max. permitted off-delay time -
20 Second
Min. adjustable delay-on energization time -
0.1 Second
Min. adjustable off-delay time -
0.1 Second
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Response value voltage -
17 Volt
Single-phase hysteresis possible -
Single-phase over voltage possible -
Single-phase under voltage possible -
Type of electric connection -
Screw connection
Type of voltage measurement range -
AC/DC
Voltage measurement range 1 -
17 Volt
Width -
22.5 Millimetre
With detachable clamps -

Availability In Stock

£146.48
