3UG46412CS20

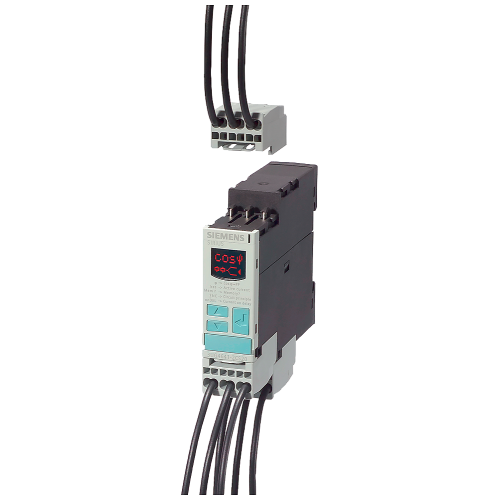

Digital monitoring relay cos phi and current monitoring from 90-690 V AC 0vershoot and undershoot se

Manufacturer's No: 3UG4641-2CS20     Manufacturer: Siemens
Digital monitoring relay cos phi and current monitoring from 90-690 V AC 0vershoot and undershoot se

Availability On Request

£235.29
  • Digital monitoring relay for cos phi and current monitoring
  • Voltage range: 90-690 V AC
  • Self-supplied with overshoot and undershoot protection
  • Frequency range: 50 to 60 Hz
  • Noise pulses delay: 0.1 to 20 seconds
  • Hysteresis for current: 0.1 to 2 A
  • 2 change-over contacts
  • Spring-type connection system
  • Suitable for various applications

Accessories

Follow-up article



Product

Manufacturer Material ID -
3UG4641-2CS20
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
90 Volt
Rated control supply voltage Us at AC 60HZ -
90 Volt
Rated voltage -
90 Volt
Rated control supply voltage at AC 50 Hz -
90 Volt
Rated control supply voltage at AC 60 Hz -
90 Volt
Voltage type for actuating -
AC
Measurement current -
0.2 Ampere
Adjustable setting value for Cos-Phi -
0.1
Depth -
91 Millimetre
Height -
103 Millimetre
Max. permitted delay-on energization time -
99 Second
Max. permitted off-delay time -
20 Second
Min. adjustable delay-on energization time -
0 Second
Min. adjustable off-delay time -
0.1 Second
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of phases -
1
Rated operation frequency -
50 Hertz
Type of electric connection -
Spring clamp connection
Width -
22.5 Millimetre
With detachable clamps -

Availability On Request

£235.29
