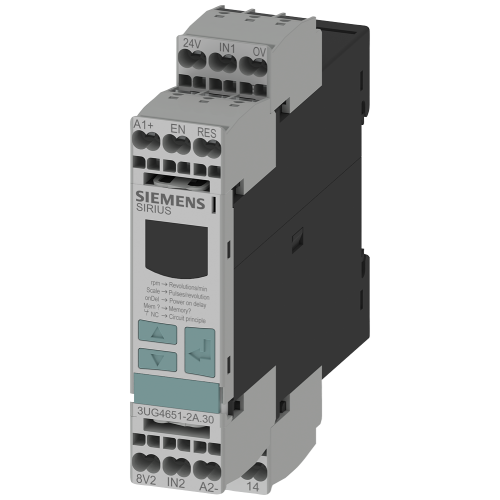

3UG46512AA30

Digital monitoring relay Speed monitoring from 0.1 to 2200 rpm 0vershoot and undershoot Supply volta

Manufacturer's No: 3UG4651-2AA30     Manufacturer: Siemens
Digital monitoring relay Speed monitoring from 0.1 to 2200 rpm 0vershoot and undershoot Supply volta

Availability Back Order

£221.38
  • Speed monitoring range: 0.1 to 2200 rpm
  • Supply voltage: 24 V AC/DC (50 to 60 Hz)
  • ON delay: 1 to 900 s
  • Tripping delay: 0.1 to 99.9 s
  • Hysteresis: 0.1 to 99 rpm
  • Contact type: 1 change-over contact
  • Connection system: Spring-type, with or without fault buffer
  • Galvanic isolation: Not provided

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3UG4651-2AA30
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Category according to EN 954-1 -
UN
Evaluation inputs -
UN
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Performance level acc. EN ISO 13849-1 -
None
Performance level acc. to EN ISO 13849-1 -
None
Depth -
103 Millimetre
Function rotational speed monitoring -
Height -
86 Millimetre
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, semiconductors -
0
Number of outputs, safety related, undelayed, with contact -
0
Number of outputs, signalling function, delayed, semiconductors -
0
Number of outputs, signalling function, delayed, with contact -
1
Number of outputs, signalling function, undelayed, semiconductors -
0
Number of outputs, signalling function, undelayed, with contact -
0
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operating frequency -
50 Hertz
SIL according to IEC 61508 -
None
Type of electric connection -
Spring clamp connection
Voltage type for actuating -
AC/DC
Width -
22.5 Millimetre
With approval according to UL -
With detachable clamps -

Availability Back Order

£221.38
