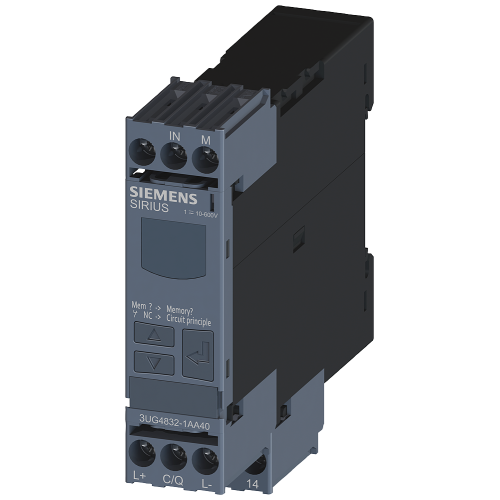

3UG48321AA40

Monitoring relay, digital, voltage monitoring, 22.5 mm for IO-Link 10 to 60

Manufacturer's No: 3UG4832-1AA40     Manufacturer: Siemens
Monitoring relay, digital, voltage monitoring, 22.5 mm for IO-Link 10 to 60

View 3D

Availability Back Order

£182.27
  • Digital monitoring relay for voltage monitoring
  • Compact size: 22.5 mm width for IO-Link compatibility
  • Voltage range: 10 to 600 V AC/DC
  • Overvoltage and undervoltage protection
  • Adjustable hysteresis range: 0.1 to 300 V
  • ON-delay time feature
  • Tripping delay time setting
  • Equipped with 1 change-over contact with screw terminals

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3UG4832-1AA40
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Voltage measurement range 2 -
- Volt
Rated control supply voltage Us at DC -
18 Volt
Rated control supply voltage at DC -
18 Volt
Voltage type for actuating -
DC
Contains function DC-over voltage -
Contains function DC-under voltage -
Contains function DC-voltage hysteresis -
Depth -
91 Millimetre
Height -
92 Millimetre
Max. permitted delay-on energization time -
999.9 Second
Max. permitted off-delay time -
999.9 Second
Min. adjustable delay-on energization time -
0 Second
Min. adjustable off-delay time -
0 Second
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Response value voltage -
10 Volt
Single-phase hysteresis possible -
Single-phase over voltage possible -
Single-phase under voltage possible -
Type of electric connection -
Screw connection
Type of voltage measurement range -
AC/DC
Voltage measurement range 1 -
10 Volt
Width -
22.5 Millimetre
With detachable clamps -

Availability Back Order

£182.27
