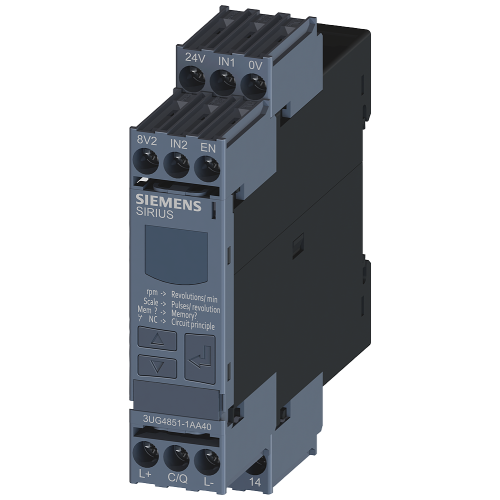

3UG48511AA40

Digital monitoring relay Speed monitoring for IO-Link from 0.1...2200 rpm 0vershoot and undershoot O

Manufacturer's No: 3UG4851-1AA40     Manufacturer: Siemens
Digital monitoring relay Speed monitoring for IO-Link from 0.1...2200 rpm 0vershoot and undershoot O

View 3D

Availability Back Order

£261.14
  • Speed monitoring range: 0.1 to 2200 rpm
  • Features overshoot and undershoot detection
  • ON-delay time and tripping delay time included
  • Hysteresis range: 0.1 to 99 rpm
  • Equipped with 1 change-over contact with screw terminals

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3UG4851-1AA40
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Category according to EN 954-1 -
UN
Rated operating frequency -
- Hertz
Evaluation inputs -
UN
Rated control supply voltage Us at DC -
24 Volt
Performance level acc. EN ISO 13849-1 -
None
Performance level acc. to EN ISO 13849-1 -
None
Depth -
102 Millimetre
Function rotational speed monitoring -
Height -
91 Millimetre
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, semiconductors -
0
Number of outputs, safety related, undelayed, with contact -
0
Number of outputs, signalling function, delayed, semiconductors -
0
Number of outputs, signalling function, delayed, with contact -
1
Number of outputs, signalling function, undelayed, semiconductors -
0
Number of outputs, signalling function, undelayed, with contact -
0
Rated control supply voltage at DC -
24 Volt
SIL according to IEC 61508 -
None
Type of electric connection -
Screw connection
Voltage type for actuating -
DC
Width -
22.5 Millimetre
With detachable clamps -

Availability Back Order

£261.14
