3VA10962ED320AA0

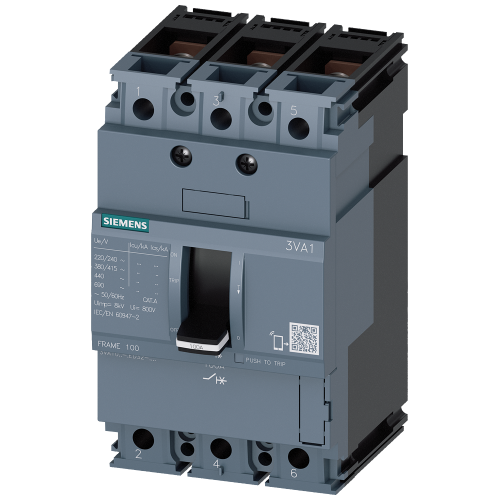

Circuit Breaker 3Va1 Iec Frame 100 Breaking Capacity Class B Icu=16Ka @ 415V 3-Pole

Manufacturer's No: 3VA1096-2ED32-0AA0     Manufacturer: Siemens
Circuit Breaker 3Va1 Iec Frame 100 Breaking Capacity Class B Icu=16Ka @ 415V 3-Pole

Availability Back Order

£144.69
  • Circuit Breaker: 3VA1 IEC Frame 100
  • Breaking Capacity: Class B, Icu=16 kA @ 415 V
  • Configuration: 3-pole, Line Protection TM210, FTFM
  • Current Ratings: In=16 A (Overload Protection), Ir=16 A (Short-Circuit Protection)
  • Nut Keeper Kit: Ii=20 x In

Accessories

Question and Answer (Q&A video)
Product video
Instructional video
Question and Answer (Q&A video)
Instructional video
Product video


Product

Manufacturer Material ID -
3VA1096-2ED32-0AA0
Net Weight -
0.95kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
16 kiloampere
Adjustment range undelayed short-circuit release -
320 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
16 Ampere
Position of connection for main current circuit -
Front
Power loss -
10.6 Watt
Rated permanent current Iu -
16 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
16 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability Back Order

£144.69
