3VA11166ED460AA0

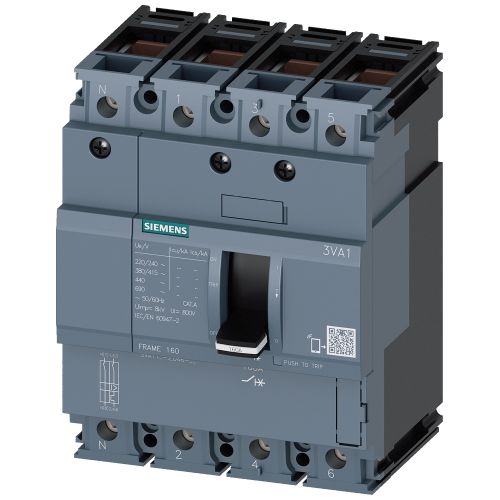

Circuit Breaker 3Va1 Iec Frame 160 Breaking Capacity Class H Icu=70Ka @ 415V 4-Pole

Manufacturer's No: 3VA1116-6ED46-0AA0     Manufacturer: Siemens
Circuit Breaker 3Va1 Iec Frame 160 Breaking Capacity Class H Icu=70Ka @ 415V 4-Pole

View 3D

Availability Back Order

£549.90
  • Circuit Breaker: 3VA1 IEC Frame 160
  • Breaking Capacity: Class H, Icu=70 kA @ 415 V
  • Configuration: 4-pole, Line Protection TM210, FTFM
  • Rated Current: In=160 A
  • Overload Protection: Ir=160 A
  • Short-Circuit Protection: Ii=10 x In
  • Terminal Connection: N Conductor Unprotected
Question and Answer (Q&A video)
Product video
Instructional video
Question and Answer (Q&A video)
Instructional video
Product video


Product

Manufacturer Material ID -
3VA1116-6ED46-0AA0
Net Weight -
1.17kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
70 kiloampere
Adjustment range undelayed short-circuit release -
1600 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
160 Ampere
Position of connection for main current circuit -
Front
Power loss -
38 Watt
Rated permanent current Iu -
160 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
70 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Frame clamp

Availability Back Order

£549.90
