3VA20105JP420AA0

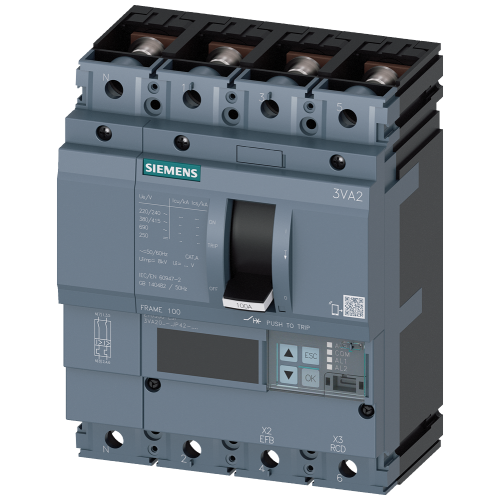

circuit breaker 3VA2 IEC Frame 100 breaking capacity class M Icu=55 kA @ 415 V 4-pole, line protection ETU550, LSI, In=100 A overl

Manufacturer's No: 3VA2010-5JP42-0AA0     Manufacturer: Siemens

Availability Back Order

£980.29
  • Circuit Breaker: 3VA2 IEC Frame 100
  • Breaking Capacity: Icu = 55 kA @ 415 V
  • Configuration: 4-pole, Line Protection
  • Overload Protection: In = 100 A, Ir = 40 A...100 A
  • Short-Circuit Protection: Isd = 0.6..10x In
  • Instantaneous Protection: Ii = 1.5..12x In
  • Neutral Conductor Protection: Adjustable (up to 100%)
  • Additional: Nut Keeper Kit

Accessories

Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2010-5JP42-0AA0
Net Weight -
2.73kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range short-term delayed short-circuit release -
60 Ampere
Adjustment range undelayed short-circuit release -
150 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
40 Ampere
Position of connection for main current circuit -
Front
Power loss -
13.5 Watt
Rated permanent current Iu -
100 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection
