3VL25053KN300AA0

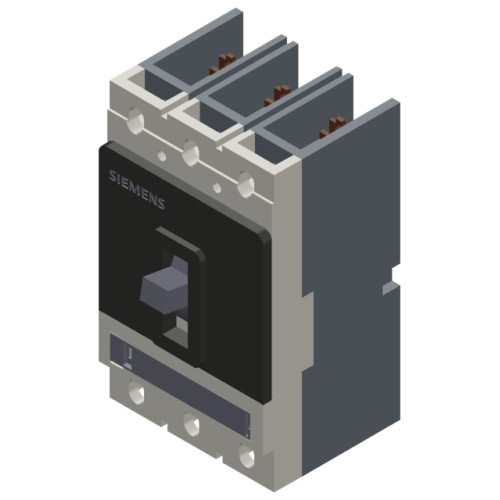

circuit breaker VL150 UL type DG (cat no. LDK3B050) non-interchangeable frame, with circuit breaker approval acc. to UL 489 very h

Manufacturer's No: 3VL2505-3KN30-0AA0     Manufacturer: Siemens
circuit breaker VL150 UL type DG (cat no. LDK3B050) non-interchangeable frame, with circuit breaker approval acc. to UL 489 very high breaking capa...

Availability On Request

POA
  • Circuit breaker VL150 UL type DG (cat no. LDK3B050)
  • Non-interchangeable frame
  • UL 489 approval
  • Very high breaking capacity: 100kA @ 480V, 18kA @ 600/347V
  • 3-pole NEMA rating
  • Electronic Trip Unit TM, LI TA=40°C, In=50A
  • Rated current II=450-700A
  • Short-circuit protection Ir=50A
  • Electronic Trip Unit for line protection
  • No connection accessories included

Read more

  • No auxiliary release or auxiliary/alarm switch
  • Spare part for replacement usage only


Product

Manufacturer Material ID -
3VL2505-3KN30-0AA0
Net Weight -
2.20kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Suitable for DIN rail (top hat rail) mounting -

Availability On Request

POA
Sign in or Register for customer prices.
