3VL25153KN300AB1

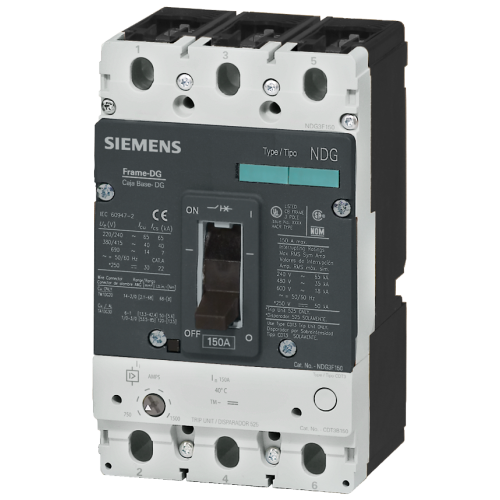

circuit breaker VL150 UL type DG (cat no. LDK3B150) non-interchangeable frame, with circuit breaker

Manufacturer's No: 3VL2515-3KN30-0AB1     Manufacturer: Siemens
circuit breaker VL150 UL type DG (cat no. LDK3B150) non-interchangeable frame, with circuit breaker

Availability On Request

POA
  • Circuit breaker VL150 UL type DG (cat no. LDK3B150)
  • Non-interchangeable frame
  • UL 489 approval
  • Very high breaking capacity: 100KA@480V and 18KA@600/347V
  • 3-pole NEMA rating
  • Electronic Trip Unit TM, LI TA=40°C
  • Rated current In=150A, II=800...1600A
  • Short-circuit protection Ir=150A
  • Line protection without connection accessories
  • Auxiliary switch mounting kit 2 AUX (1 NO + 1 NC)


Product

Manufacturer Material ID -
3VL2515-3KN30-0AB1
Net Weight -
2.20kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of poles -
3
Power loss -
48 Watt
Suitable for DIN rail (top hat rail) mounting -
