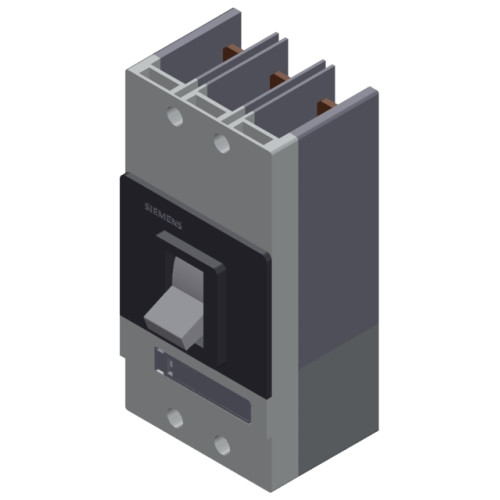

3VL47403DC360AD1

circuit breaker VL400L very high breaking capacity Icu=100kA, 415V AC 3-pole, line protection trip u

Manufacturer's No: 3VL4740-3DC36-0AD1     Manufacturer: Siemens
circuit breaker VL400L very high breaking capacity Icu=100kA, 415V AC 3-pole, line protection trip u

Availability On Request

POA
  • Circuit Breaker VL400L
    • Very high breaking capacity: Icu=100kA, 415V AC
    • 3-pole
    • Line protection trip unit
    • Overload protection: II=2000...4000A
    • Short-circuit protection without auxiliary release
    • Rated current: IR=320...400A
  • Auxiliary/Alarm Switch Mounting Kit
    • 2 AUX (1 NO+1 NC) + 1 AS (1 NO)


Product

Manufacturer Material ID -
3VL4740-3DC36-0AD1
Net Weight -
6.26kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
2
Number of poles -
3
Power loss -
175 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
100 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of electrical connection of main circuit -
Screw connection

Availability On Request

POA
