3VL48602KN300AA0

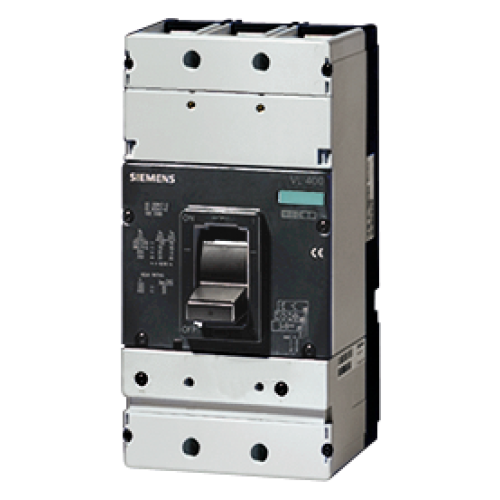

circuit breaker VL400X UL; type LG (cat no. HLX3B600) non-interchangeable frame, with circuit breaker approval acc. to UL 489 high

Manufacturer's No: 3VL4860-2KN30-0AA0     Manufacturer: Siemens
circuit breaker VL400X UL; type LG (cat no. HLX3B600) non-interchangeable frame, with circuit breaker approval acc. to UL 489 high breaking capacit...

Availability On Request

POA
  • Circuit breaker VL400X UL
  • Type LG (cat no. HLX3B600)
  • Non-interchangeable frame
  • Approval according to UL 489
  • High breaking capacity: 65kA/480V and 18kA/600V
  • 3-pole, NEMA rating
  • Trip unit TM, LI TA=40°C
  • In=< 600A, rated current II=2750...5500A
  • Short-circuit protection IR=600A
  • ETU for line protection

Read more

  • Spare part product for replacement usage only

Follow-up article



Product

Manufacturer Material ID -
3VL4860-2KN30-0AA0
Net Weight -
5.70kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
UNSPSC -
26101109

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Power loss -
230 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
70 kiloampere
Suitable for DIN rail (top hat rail) mounting -
