3VL77101SB360AA0

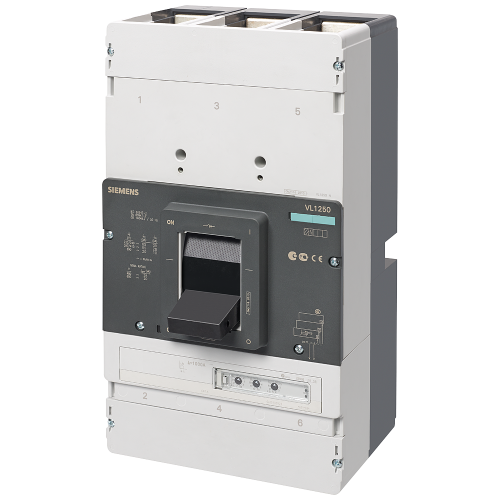

circuit breaker VL1250N standard breaking capacity Icu=55kA, 415V AC 3-pole, line protection trip un

Manufacturer's No: 3VL7710-1SB36-0AA0     Manufacturer: Siemens
circuit breaker VL1250N standard breaking capacity Icu=55kA, 415V AC 3-pole, line protection trip un

Availability On Request

POA
  • Circuit breaker VL1250N
  • Standard breaking capacity: Icu = 55 kA, 415V AC, 3-pole
  • Line protection trip unit: ETU10
  • LI In = 1000A, rated current IR = 400-1000A
  • Overload protection: II = 1.25 to 11 x IN
  • Short-circuit protection
  • No auxiliary release or auxiliary/alarm switch
  • Spare part for replacement use only

Follow-up article



Product

Manufacturer Material ID -
3VL7710-1SB36-0AA0
Net Weight -
26.04kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
MX
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Power loss -
135 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Type of electrical connection of main circuit -
Screw connection

Availability On Request
