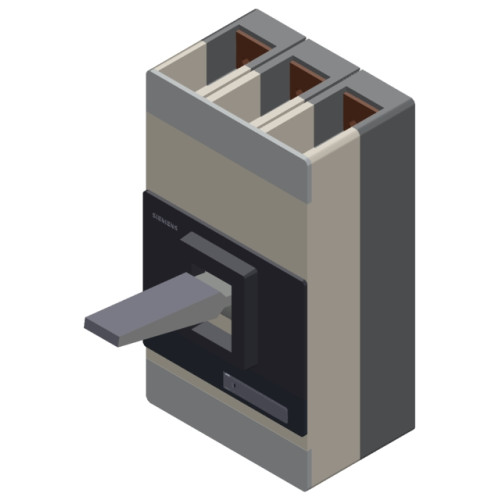

3VL81161PE300AA0

circuit breaker VL1600 UL; type PG (cat no. NPX3T160) non-interchangeable frame, with circuit breaker approval acc. to UL 489 stan

Manufacturer's No: 3VL8116-1PE30-0AA0     Manufacturer: Siemens
circuit breaker VL1600 UL; type PG (cat no. NPX3T160) non-interchangeable frame, with circuit breaker approval acc. to UL 489 standard breaking cap...

Availability On Request

POA
  • Circuit breaker VL1600 UL
  • Type PG (cat no. NPX3T160)
  • Non-interchangeable frame
  • UL 489 standard approval
  • Breaking capacity: 35kA/480V
  • 3-pole NEMA rating
  • Trip unit ETU, LSI TA=40°C
  • In=1600A rated current
  • ISD=1.5 to 8 xIR
  • II=6 xIN short-circuit protection

Read more

  • IR=700-1600A overcurrent rel. for line protection
  • No connection accessories included
  • No auxiliary release or alarm switch
  • Spare part for replacement usage only


Product

Manufacturer Material ID -
3VL8116-1PE30-0AA0
Net Weight -
31.30kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
MX
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Power loss -
260 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
50 kiloampere
Suitable for DIN rail (top hat rail) mounting -
