3KC44460EA210AA3

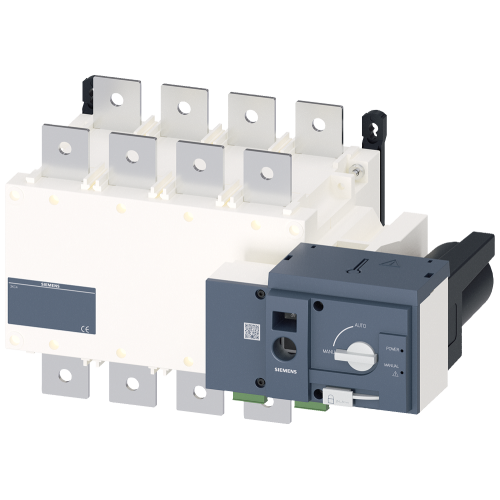

3KC transfer switching equipment, remote-controlled, RTSE, 4-pole, Iu: 630 A, Ue AC: 415 V, Ie ...

Manufacturer's No: 3KC4446-0EA21-0AA3     Manufacturer: Siemens
3KC transfer switching equipment, remote-controlled, RTSE, 4-pole, Iu: 630 A, Ue AC: 415 V, Ie ...

Availability On Request

£4,866.78
  • Product: SENTRON Transfer Switching Equipment 3KC
  • Type: Remotely operated with motorized operating mechanism
  • Configuration: 4-pole with screw mounting
  • Rated Current: Iu 630 A
  • Rated Voltage: Ue AC 415 V
  • Rated Operational Current:
    • AC-33 B at 415 V: 400 A
    • AC-23 A at 690 V: 400 A
  • Features a long handle and busbar connection
  • Operating Mechanism: Located at the right end

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KC4446-0EA21-0AA3
Net Weight -
17.94kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
TN
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Rated short-time withstand current lcw -
- kiloampere
Switching power at 400 V -
- Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Black
Degree of protection (IP), front side -
IP00
Interlockable -
Max. rated operation voltage Ue AC -
415 Volt
Motor drive integrated -
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Rated operating voltage -
166 Volt
Rated operation power at AC-23, 400 V -
250 Kilowatt
Rated permanent current at AC-21, 400 V -
630 Ampere
Rated permanent current at AC-23, 400 V -
500 Ampere
Rated permanent current Iu -
630 Ampere
Suitable for floor mounting -
Type of control element -
Long turning handle
Type of electrical connection of main circuit -
Rail connection
Version as main switch -
Version as maintenance-/service switch -

Availability On Request

£4,866.78
