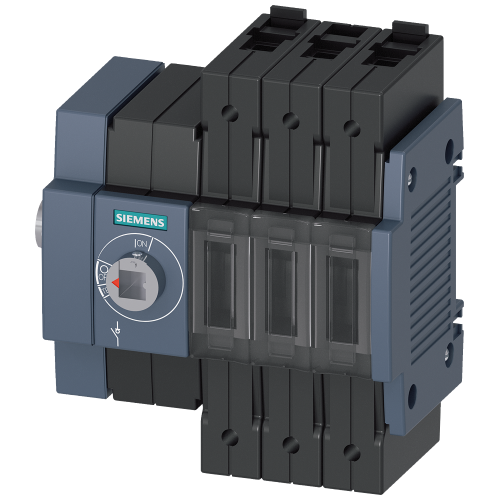

3KD30342ME100

SWITCH-DISCONNECTOR 100A, FRAME SIZE 1, 3-POLE LATERAL DRIVE LEFT BASIC UNIT WITHOUT HANDLE BOX TERMINAL

Manufacturer's No: 3KD3034-2ME10-0     Manufacturer: Siemens
SWITCH-DISCONNECTOR 100A, FRAME SIZE 1, 3-POLE LATERAL DRIVE LEFT BASIC UNIT WITHOUT HANDLE BOX TERMINAL

Availability On Request

£80.42
  • Switch-Disconnector
  • 100A current rating
  • Frame size 1
  • 3-pole configuration
  • Lateral drive on the left side
  • Basic unit without handle
  • Terminal box not included

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3KD3034-2ME10-0
Net Weight -
0.85kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
UNSPSC -
32151705

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Type of control element -
None
Colour control element -
Other
Suitable for distribution board installation -
Suitable for intermediate mounting -
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Degree of protection (IP), front side -
IP20
Max. rated operation voltage Ue AC -
1000 Volt
Number of auxiliary contacts as change-over contact -
3
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Number of switches -
1
Rated operation power at AC-23, 400 V -
45 Kilowatt
Rated permanent current at AC-21, 400 V -
100 Ampere
Rated permanent current at AC-23, 400 V -
80 Ampere
Rated permanent current Iu -
100 Ampere
Rated short-time withstand current lcw -
3 kiloampere
Suitable for floor mounting -
Switching power at 400 V -
55 Kilowatt
Type of electrical connection of main circuit -
Frame clamp
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability On Request

£80.42
