3KD36420PE100

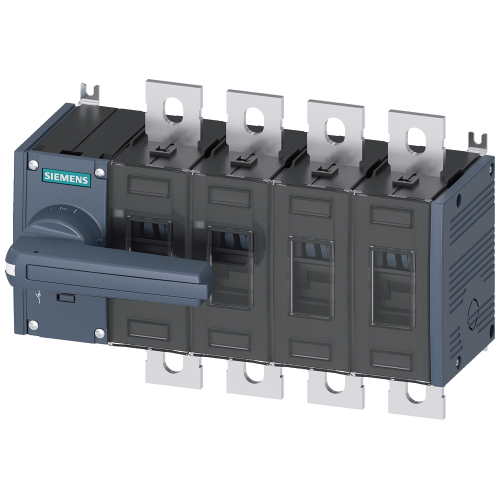

Switch disconnector 200 A, Size 3, 4-pole Front operating mechanism left Complete unit with direct operating mechanism gray flat t

Manufacturer's No: 3KD3642-0PE10-0     Manufacturer: Siemens
Switch disconnector 200 A, Size 3, 4-pole Front operating mechanism left Complete unit with direct operating mechanism gray flat terminal

View 3D

Availability Back Order

£228.27
  • Switch disconnector
    • 200 A
    • Size 3
    • 4-pole
    • Front operating mechanism on the left
    • Complete unit with direct operating mechanism
    • Gray flat terminal

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3KD3642-0PE10-0
Net Weight -
3.59kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Grey
Degree of protection (IP), front side -
IP00
Interlockable -
Max. rated operation voltage Ue AC -
1000 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
6
Number of auxiliary contacts as normally open contact -
6
Number of poles -
4
Number of switches -
1
Rated operation power at AC-23, 400 V -
110 Kilowatt
Rated permanent current at AC-21, 400 V -
200 Ampere
Rated permanent current at AC-23, 400 V -
200 Ampere
Rated permanent current Iu -
200 Ampere
Rated short-time withstand current lcw -
13 kiloampere
Suitable for floor mounting -
Switching power at 400 V -
110 Kilowatt
Type of control element -
Long turning handle
Type of electrical connection of main circuit -
Flat plug-in connection
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability Back Order

£228.27
