3KD42300PE200

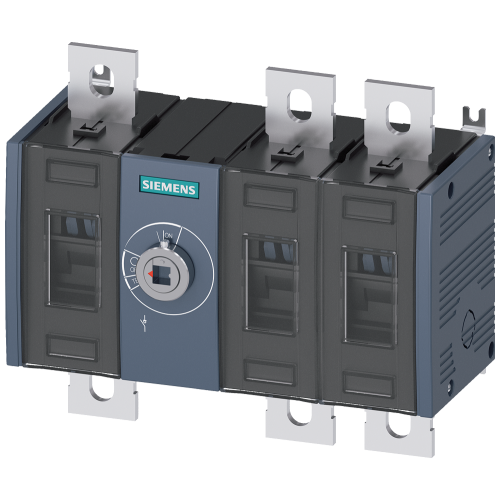

Switch disconnector 400 A, Size 3, 3-pole Front operating mechanism center Basic unit without handle

Manufacturer's No: 3KD4230-0PE20-0     Manufacturer: Siemens
Switch disconnector 400 A, Size 3, 3-pole Front operating mechanism center Basic unit without handle

View 3D

Availability Back Order

£282.52
  • Switch disconnector
  • 400 A
  • Size 3
  • 3-pole
  • Front operating mechanism center
  • Basic unit without handle
  • Flat terminal

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3KD4230-0PE20-0
Net Weight -
2.89kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Type of control element -
None
Colour control element -
Other
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
1000 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
6
Number of auxiliary contacts as normally open contact -
6
Number of poles -
3
Number of switches -
1
Rated operation power at AC-23, 400 V -
200 Kilowatt
Rated permanent current at AC-21, 400 V -
400 Ampere
Rated permanent current at AC-23, 400 V -
400 Ampere
Rated permanent current Iu -
400 Ampere
Rated short-time withstand current lcw -
13 kiloampere
Suitable for floor mounting -
Switching power at 400 V -
220 Kilowatt
Type of electrical connection of main circuit -
Flat plug-in connection
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability Back Order

£282.52
