3KD56400RE100

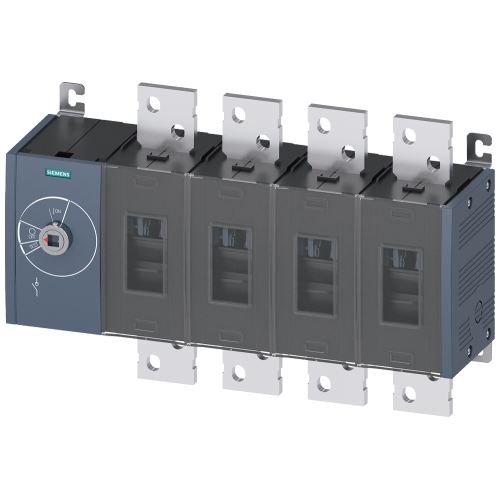

SWITCH-DISCONNECTOR 2000A, FRAME SIZE 5, 4-POLE FRONT OPERATING LEFT BASIC UNIT WITHOUT HANDLE FLAT TERMINAL

Manufacturer's No: 3KD5640-0RE10-0     Manufacturer: Siemens
SWITCH-DISCONNECTOR 2000A, FRAME SIZE 5, 4-POLE FRONT OPERATING LEFT BASIC UNIT WITHOUT HANDLE FLAT TERMINAL

Availability Back Order

£3,431.43
  • Switch-Disconnector
  • 2000A current rating
  • Frame size 5
  • 4-pole configuration
  • Front operating
  • Left basic unit
  • Flat terminal design
  • Handle not included

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3KD5640-0RE10-0
Net Weight -
21.38kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
UNSPSC -
32151705

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Type of control element -
None
Colour control element -
Other
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
1000 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
8
Number of auxiliary contacts as normally open contact -
8
Number of poles -
4
Number of switches -
1
Rated operation power at AC-23, 400 V -
1000 Kilowatt
Rated permanent current at AC-21, 400 V -
2000 Ampere
Rated permanent current at AC-23, 400 V -
2000 Ampere
Rated permanent current Iu -
2000 Ampere
Rated short-time withstand current lcw -
55 kiloampere
Suitable for floor mounting -
Switching power at 400 V -
400 Kilowatt
Type of electrical connection of main circuit -
Flat plug-in connection
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability Back Order

£3,431.43
